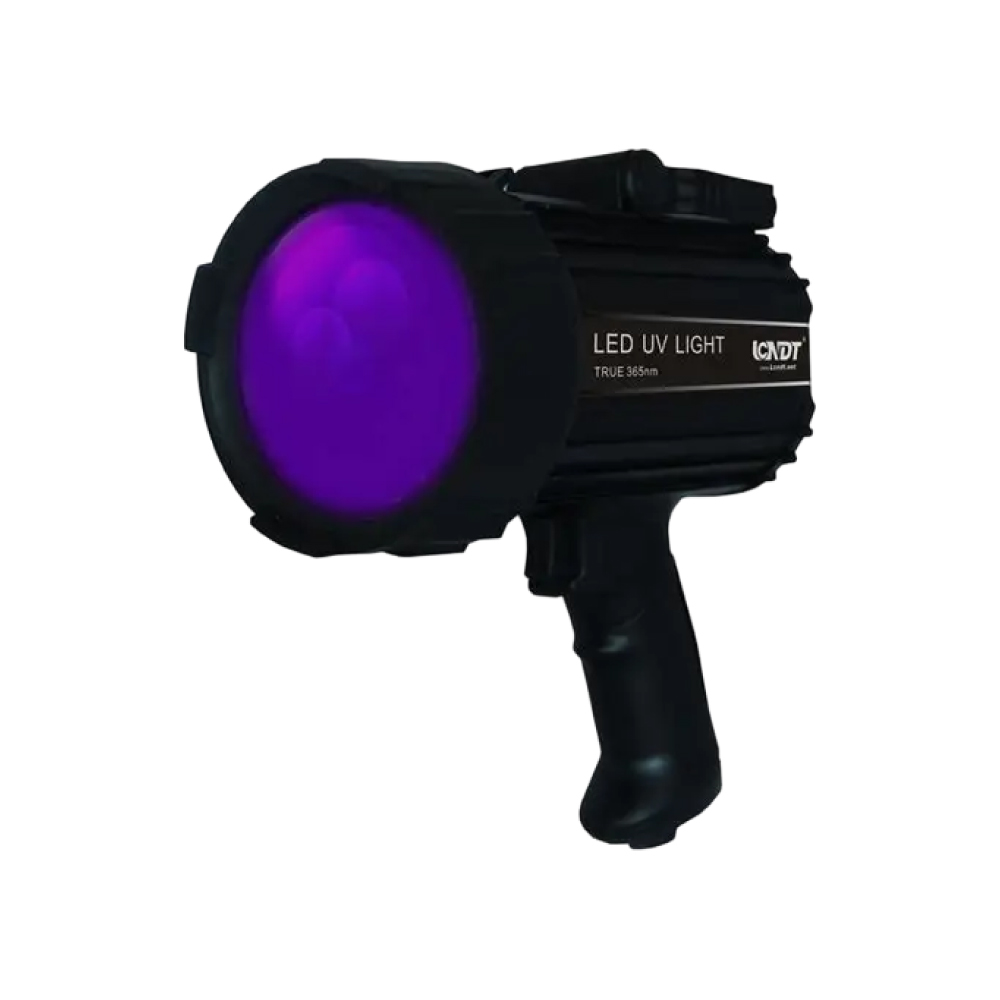

The LCNDT UV-100 Series Portable LED UV Lamp is a compact, code-compliant inspection light designed for critical non-destructive testing (NDT) applications.
Delivering a certified 365nm UV-A output with an intensity of ~5,000 µW/cm² at 15 inches, the UV-100 provides a wide, uniform beam while maintaining ultra-low visible white light output under 2 foot-candles. Engineered with a dustproof and waterproof housing, a shatter-resistant PMMA lens, and pure 365nm Woods Glass filtering, it delivers instant-on, cool operation built to withstand harsh testing environments.
Key Specifications
UV-A Intensity: ~5,000 µW/cm² @ 15″ (38 cm)
Wavelength: Certified 365nm UV-A
Code Compliance: ASTM E1417, ASTM E1444, ASTM E2297, and ASTM E3022
Visible Light: < 2 foot-candles
LED Lifespan: 30 000 hours (nominal)
Dimensions & Weight: 220 x 240 x 110 mm (8.6″ x 9.4″ x 4.3″); 1,5 lbs (0,68 kg)
Protection: Water and dustproof construction; shatter-resistant PMMA lens
Warranty: 5-year parts warranty and 1-year labour warranty
Model Variations
| Model | Part Number | Power & Battery Configuration |
| UV-100C | UV-LC-UV100C |
Standard AC power (100–240 VAC, 50–60 Hz); optional 3- to 6-hour BUV-6000 battery pack. |
| UV-100B | UV-LC-UV100B |
Built-in battery providing 6 hours of continuous power; 50-minute quick charge; low battery indicator; runs on AC power while charging. |
Standard Kit Inclusions
UV LED Lamp
AC Power Adapter (100–240 VAC) with 2,5 m cable
UV Safety Glasses
Soft Carrying Case
Instruction Manual & Calibration Certificate
Available accessories include a replacement Pure 365nm Woods Glass filter, adjustable mounting tripod stand, and the Li-Ion constant-intensity BUV-6000 battery kit.
