Detailed Overview

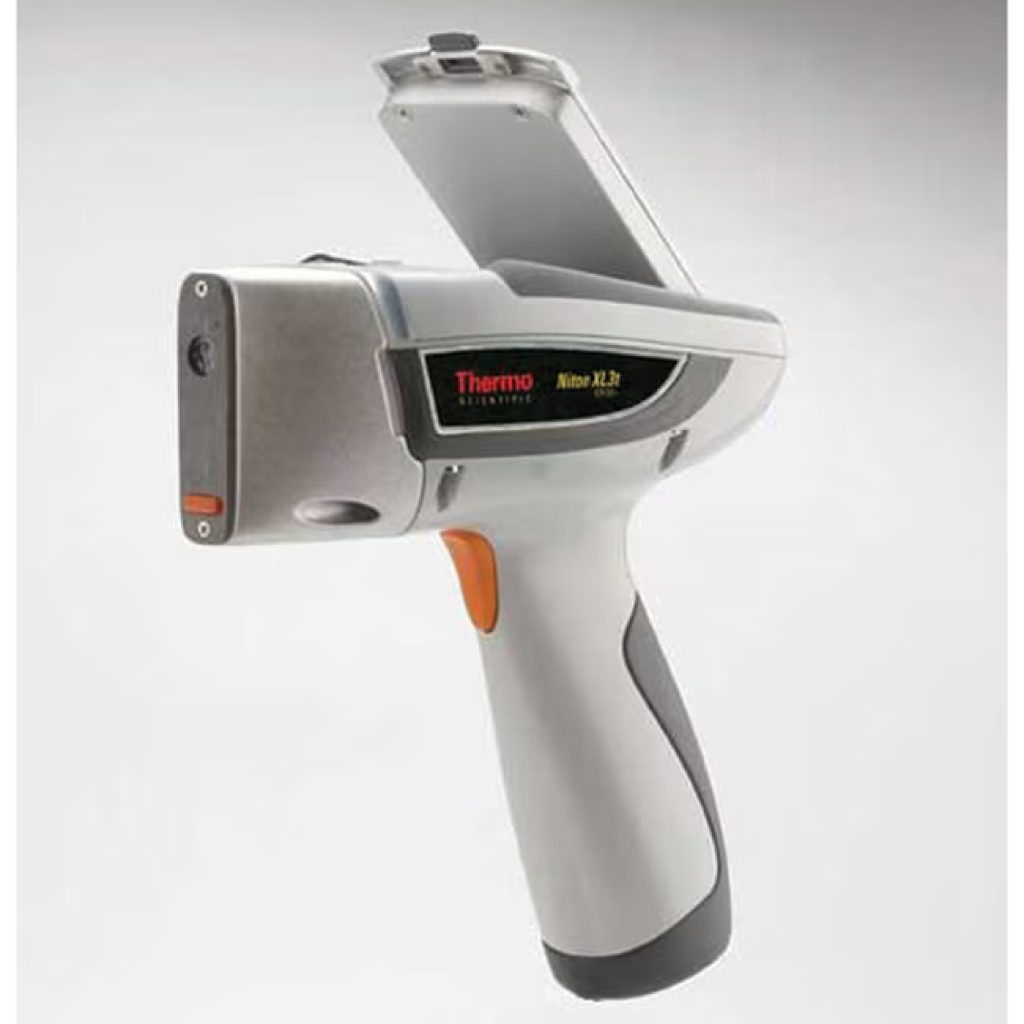

Speed and accuracy in light element XRF analysis are non-negotiable across industries such as mining, exploration, and scrap metal recycling. The Thermo Scientific™ Niton™ XL3t GOLDD+ XRF Analyzer delivers real-time, dependable results for material identification, including elements that are traditionally harder to analyze. It achieves this without relying on helium purging or vacuum systems. Engineered with Geometrically Optimized Large Area Drift Detector (GOLDD™) technology, it excels in light element XRF analysis, identifying elements from magnesium to sulfur with faster analysis times, lower detection limits, and exceptional precision.

In environments where decision-making depends on both accuracy and efficiency, GOLDD™ technology significantly accelerates light element XRF analysis, delivering measurement speeds up to ten times faster than conventional Si-PIN detectors and up to three times more precise than standard silicon drift detectors. This performance is achieved without the usual need for helium or vacuum, while still offering an optional purge for enhanced light element capability when required. Combined with one of the highest-performing X-ray tubes and detectors available, the Niton XL3t GOLDD+ stands at the forefront of handheld elemental analysis — fast, precise, and uncompromising.

Features

• Standard analytical range: Up to 30 elements from Mg to U (varies by application).
• Most powerful x-ray tube on the market for handheld XRF analysis.
• Point and shoot simplicity- very easy to use even by nontechnical personnel.
• Rugged design for real-world industrial environments.
• Nondestructive analysis with near instantaneous results.
• Sealed against moisture and dust.
• Ergonomically designed.
• Daylight-readable icons.
• Incorporates multi-language options.
• Color, touch-screen display.

Applications:

• Scrap Metal Recycling
• Mining Exploration
• Environmental

Connectivity:

• Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software suite allows you to set operator permissions, generate custom reports, print certificates of analysis, or remotely monitor, and operate the instrument hands-free from your PC.
• Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device. Optional accessories include Bluetooth barcode reader, Bluetooth printer and Bluetooth GPS.

Technical Specifications
