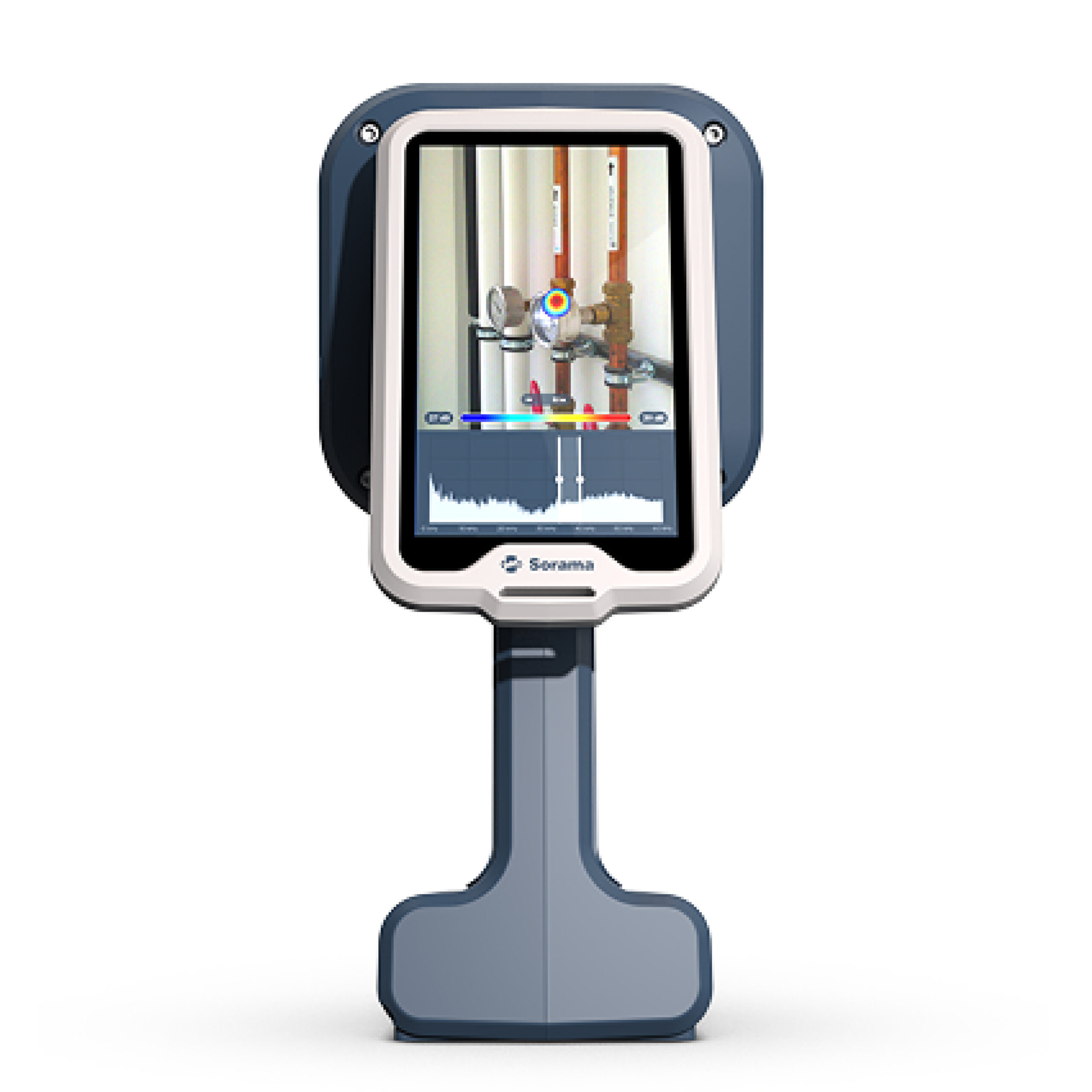

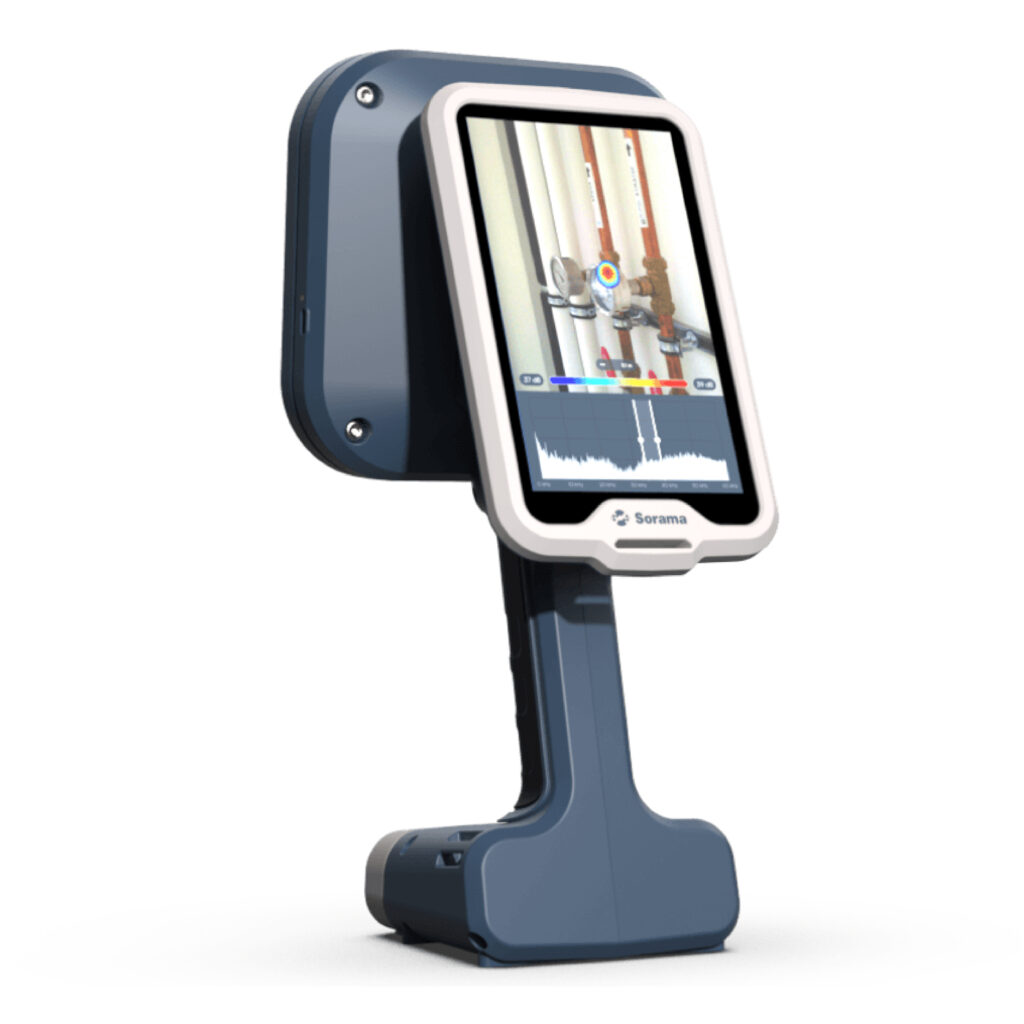

The Sorama CAM iV64s is a compact, intuitive acoustic camera that enables swift and precise detection of audible and ultrasonic leaks, from gas and compressed air leaks, to mechanical inspection and partial discharge detection. Its lightweight design, real-time visualization, and weather-independent functionality make it versatile across various industries. Designed for straightforward operation, the Sorama CAM iV64s offers preset modes like leak inspection and airtightness. The camera offers connectivity for instant data transfer, allowing real-time capture and sharing of sound images. Supplier: Sorama B.V.
The Sorama CAM iV64s is a compact, intuitive acoustic camera that enables swift and precise detection of audible and ultrasonic leaks, from gas and compressed air leaks, to mechanical inspection and partial discharge detection. Its lightweight design, real-time visualization, and weather-independent functionality make it versatile across various industries.
Designed for straightforward operation, the Sorama CAM iV64s offers preset modes like leak inspection and airtightness. The camera offers connectivity for instant data transfer, allowing real-time capture and sharing of sound images.
PHYSICAL PROPERTIES |
|
| Size (L x W x D) | 170 x 350 x 157 mm 6.7 x 13.8 x 6.2 inch |
| Weight | 1.8 kg / 4 Lb (Including battery) |
| Connectivity | USB-C, Wi-Fi (USB 3.0 Available in selected markets) |
| Battery | Rechargeable & swappable smart battery (Life ≈ 4 hours) |
| Hardware connections | 1/4″ screw connection (Tripod mountable) |
| Internal Storage | 500 Gb (Activated by package) |
DISPLAY & CAMERA |
|
| Touch display | 7-inch LCD capacitive touchscreen |
| Display resolution | 720×1280 |
| Camera resolution | 1280×960 |
MEASUREMENT FEATURES |
|
| Frequency range | 10 Hz – 120 kHz |
| Frequency resolution | 29 Hz |
| Beamforming (far field) | 2 kHz – 60 kHz, 2 kHz – 120 kHz |
| Operating distance | 0.3 m to 120 m (1 ft to 394 ft) |
DATA FORMATS |
|
| Audio + Video | .mp4 |
| Image | .jpeg |
ACOUSTICS |
|
| SNR (A-weighted @ 1kHz) | 66 dB per channel @ 1 kHz, 94 dB SPL |
| Sensitivity | -37 ± 1 dB FS @ 1 kHz, 94 dB SPL |
| Acoustic overload point | 132.5 dB SPL @ 1 kHz, <10% THD |
| Auto min/max | Auto or manual, user selectable |
OPERATING CONDITIONS |
|
| Temperature | -20° C to 50° C (-4° F to 122° F) |
SOFTWARE PACKAGES – LEAK INSPECTION (Industry) |
|
| Quiet Environment 0.3m to 5m (1ft to 16.4ft) |
0.02 l/min to 0.1 l/min |
| Quiet Environment 5m to 10m (16.4ft to 32.8ft) |
0.1 l/min to 0.2 l/min |
| Noisy Environment 0.3m to 5m (1ft to 16.4ft) |
0.05 l/min to 0.15 l/min |
| Noisy Environment 5m to 10m (16.4ft to 32.8ft) |
0.15 l/min to 0.3 l/min |
| Note: Leak detection is contingent upon physical generation of sufficient (ultra)sound by the leak. | |
SOFTWARE PACKAGES – PARTIAL DISCHARGE INSPECTION |
|
| Identifies faults in high-voltage equipment, such as cracks or gaps in insulation, tracked using the Phase-Resolved Partial Discharge (PRPD) plot. | |
SOFTWARE PACKAGES – MECHANICAL INSPECTION |
|
| Detects early signs of wear in machines (e.g., faulty bearings, cavitation in pumps) by monitoring healthy machines over time for proactive maintenance. | |
Sorana CAM iV64s: 1
Handstrap: 1
Neckstrap: 1
Waterproof travel case: 1
Smart battery: 2
Battery charger: 1
USB-C Cable: 1
Sound Imaging Device, Airborne Ultrasound Camera, Industrial Leak Mapper, Acoustic Imager, 64-Mic Acoustic Camera
What is the primary difference between the Sorama CAM IV64S and the IV64EX?
The “S” model is the standard version, while the “EX” is the certified intrinsically safe/explosion-proof version, meaning the S is for general, non-hazardous environments.
