Detailed Overview

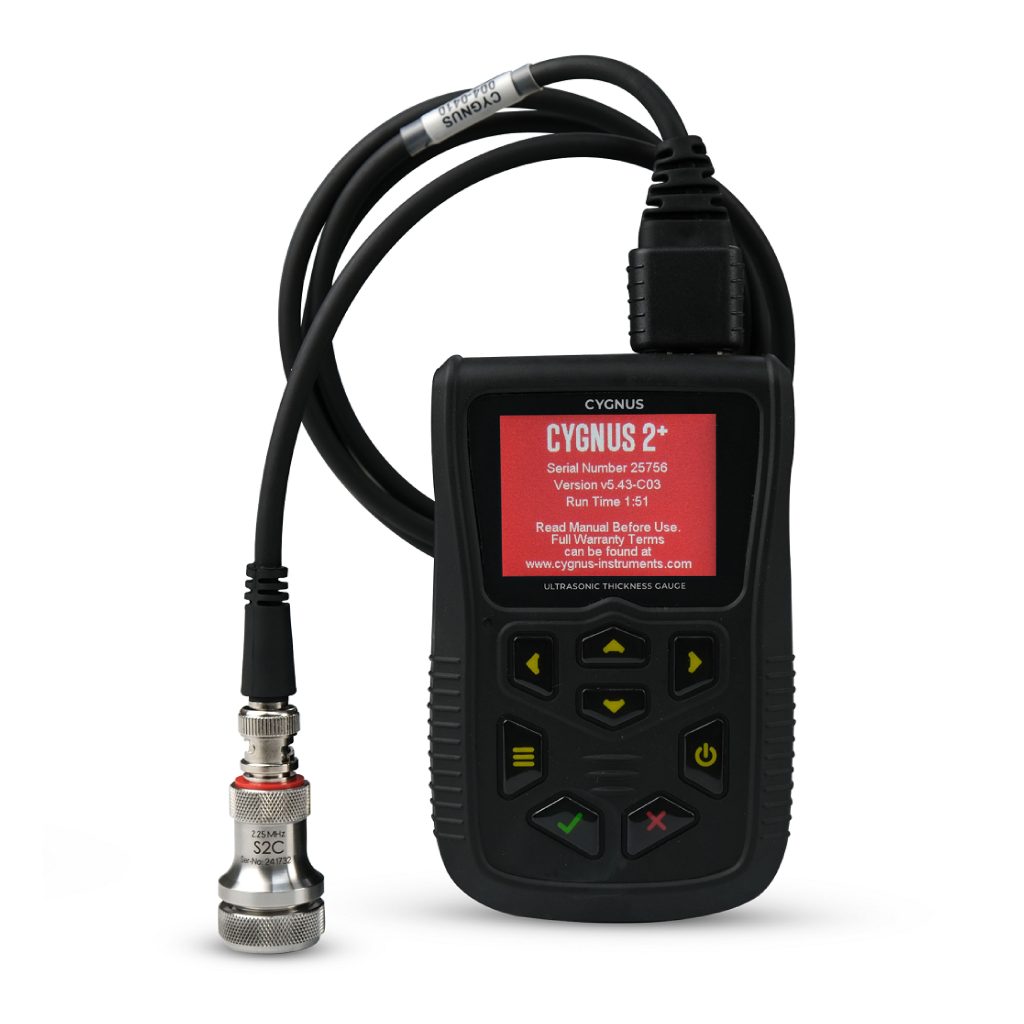

This is a compact and durable ultrasonic thickness gauge with a rugged, shock-proof design for use in harsh industrial settings. It uses the Multiple-Echo principle to measure material thickness and find corrosion, even through heavy coatings. The device allows for quick and accurate metal thickness inspection without needing to remove protective coatings, saving considerable time and preparation effort.

The simple, versatile workhorse for accurate through-coating thickness measurements.

• This entry-level multiple-echo gauge is designed for straightforward operation, providing reliable metal thickness measurements through surface coatings up to 20 mm thick.
• It is housed in a tough, splash-proof enclosure with an IP67 rating, making it suitable for general maintenance and inspection tasks in various non-hazardous environments.
• The typical package includes the main unit, charger, couplant, and a carry case.
• Features the MSI™ (Measurement Stability Indicator) to ensure only stable and reliable readings are displayed.

Top Features & Benefits

• Uses Multiple-Echo technology to ignore coatings up to 20 mm thick.
• Designed for simple operation with minimal setup and calibration requirements.
• Rugged, sealed construction (IP67) for maximum durability and weather resistance.
• Large display and simple calibration process.
• Includes Echo-Echo and Single-Echo modes for measurements on uncoated, corroded, and deep-pitted materials.
• Features MSI™ to ensure reliable readings.

Primary Uses & Functions

• A handheld ultrasonic gauge for non-destructive thickness measurement of metals and other materials using the multiple-echo technique. Its primary function is corrosion/erosion monitoring on coated structures without removing the protective layer.

Real-World Applications

• General purpose Corrosion Measurement on metals and composites.
• Thickness measurement through coatings using Multiple Echo technique (e.g., paint, lacquer, epoxy).
• Inspection of pipelines, storage tanks, and structural steel in industrial plants.
• Verification of wall thickness for fitness-for-service assessments.

Industry Solutions

• Oil & Gas (Corrosion surveys on coated pipelines)
• Petrochemical
• Railway
• Automotive
• Mining
• Power Generation (Boiler and pipework checks)
• Wind & Solar
• Manufacturing (QC for final assembled components)

Technical Specifications

Compatibility

• General corrosion and pit gauging on pipes, tanks, and structural steel.
• Employs the Multiple Echo Technique to measure metal thickness through protective coatings up to 20 mm thick.
• Compatible with a wide range of dual-element probes for various temperature and material requirements.

What’s In The Box?

• Ultrasonic thickness gauge unit.
• Standard dual element probe and lead (e.g., 2.25MHz).
• Carry case and wrist strap.
• Batteries, couplant, and calibration block.
• User manual.

Also Known As

Corrosion Meter, Multiple Echo Tester, Through-Coating Gauge, Basic UT Gauge
