The VeeScan is ETher’s first Wheel Inspection System and offers maximum flexibility for the operating inspection environment.

The VeeScan has a proven mechanical design and established record of breakdown-free operation for 365 days or more. Appealing to many companies in the Aerospace industry, the VeeScan is ideal in all wheel-testing environments.

Uses the ETher NDE AeroCheck+ Standard Aerospace Eddy Current Flaw Detector. Easily removable for other inspection tasks and protected by a rugged, clear Polycarbonate cover.
Heavy duty extruded aluminium structure with removable steel panels.

The VeeScan can be configured with a wide choice of probes and allows any wheel testing facility the flexibility to select the system most compatible with their workload. Teamed with a full choice of operation modes, the VeeScan maximises the probability of detection and is offered with the ETher NDE guarantee of complete client satisfaction and excellent technical support.

“The VeeScan offers our clients the ability to both improve inspection productivity and the quality of inspection with low cost of ownership.”

John Hansen, MD

The VeeScan H is designed to lift the wheel and fix it with an automatic adaptor that uses the wheel inertia to centre it. VeeScan H offers an integrated roller tray for easy manoeuvrability and integration into a conveyor system and can test wheels up to 900mm diameter. The H is designed with an adjustable-height Control Panel for operator comfort and can be positioned at a convenient distance from the main machine. Open on three sides, the VeeScan H offers easy wheel loading as standard.

Top Features & Benefits

Teflon covered rotating table with three self-adapting grip pins enables rapid change over from one wheel type to another. The three open sides means easy loading of the machine
Roller tray with rubber coated stainless steel rolls facilitates the wheel movement and readily integrates into a conveyor system
Removable dynamic calibration standard positioned conveniently at the front of the machine

Advantages

Dual Frequency high performance eddy current flaw detector with C-Scan capability
User friendly interface, easy initial set up, with “teach & learn” and “save & recall”
Adaptable to many wheel sizes, e.g. from helicopter nose wheels to A380 main wheels
Flexible and can scan wheels in either direction
Simple pdf reporting which can be printed, starred and viewed locally or over your network
Manufactured from heavy duty aluminium extrusions with easy servicing due to standard and readily available parts

Industry Solutions

Aerospace
Transport
Wheel Inspection

Technical Specifications

Instrument	ETHER NDE AeroCHECK+
Probe	Differentially connected absolute/integral balance load) with circular head. Recommended Frequency 200kHz, option 100kHz, 500kHz and 1.5 MHz. Recommended diameter 6mm (0.25”) (9mm (0.35”) also available and narrow shaft for large wheels).
Max Wheel Diameter	900mm/35”
Max Wheel Height	470mm/18.5”
Max Load	150kg / 330 lbs
Typical Inspection Helix	1.5mm/0.06”
Rotation Speed	15-120 rpm
Probe Position	Adaptive contour following using dual axis pressure sensors with fully bi-directional control.
Alarms	Acoustic and Visual
Frame	Extruded Aluminium
Wheel Position	The wheel is lifted clear of the roller tray using a 250mm (10”) stroke electric actuator and then held under its own weight by an adaptive automatic grip mechanism
Automatic Calibration	Yes, by means of dynamic standard option.
Automatic Stop on Defect	Yes
Turntable	Roller Tray Rubber coated steel rolls

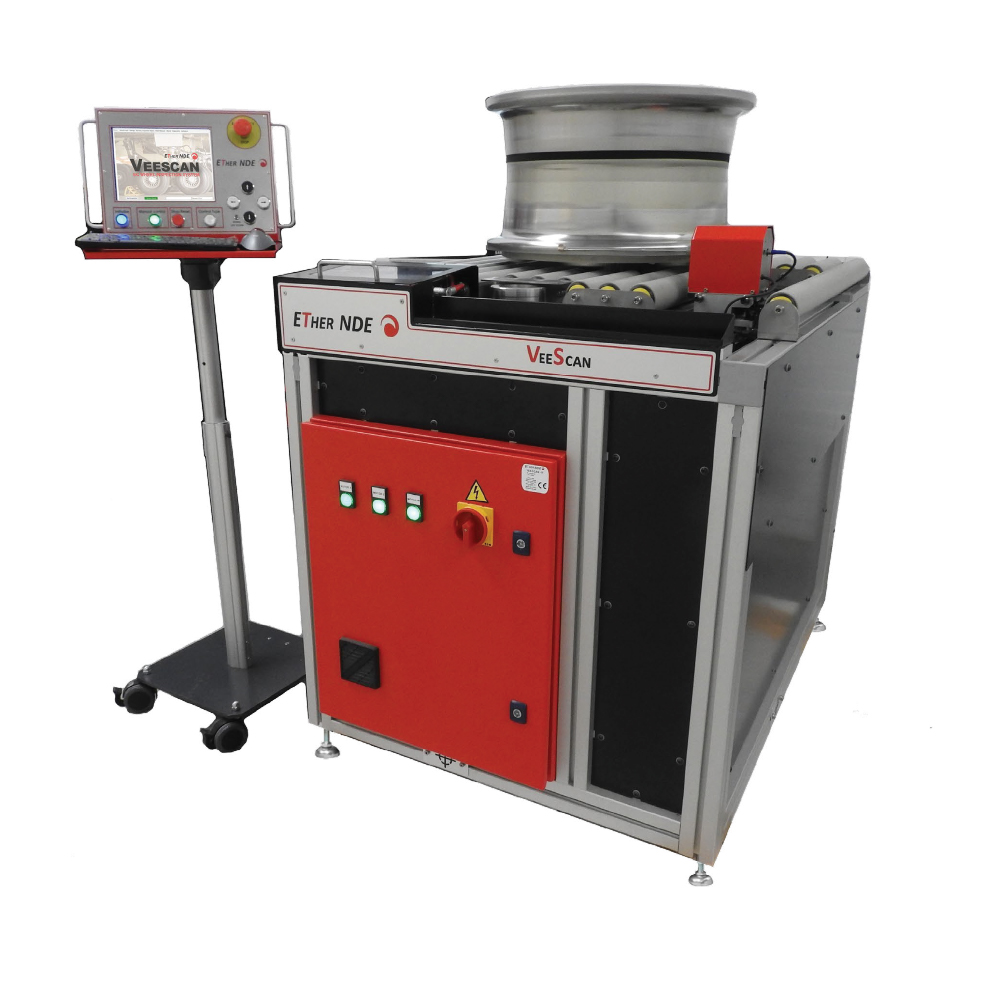

Control Station	External free standing, height adjustable pedestal or machine mounted pivot arm. With machine and eddy current control. 11” (279mm) screen, keyboard and tracker ball.
VeeScan Dimensions mm (ins)	Height: 948mm/37.3” (variable) – from top of rollers to the floor. Weight: 950mm/37.4” . Depth: 1212mm/47.7”. (1232mm/ 48.5” including the electronic case) Weight: VeeScan Unit 450kg / 992lbs VeeScan Crate 100kg / 220lbs
VeeScan Pedestal (KIVEE001-H) Dimensions mm (ins)	Height: 1447mm/ 57” (variable) . Weight: 460mm /18” (including handles.) Depth: 459.5 mm / 18”. Weight: Pedestal Unit 95kg / 210lbs Pedestal Crate 95kg / 209.5 lbs

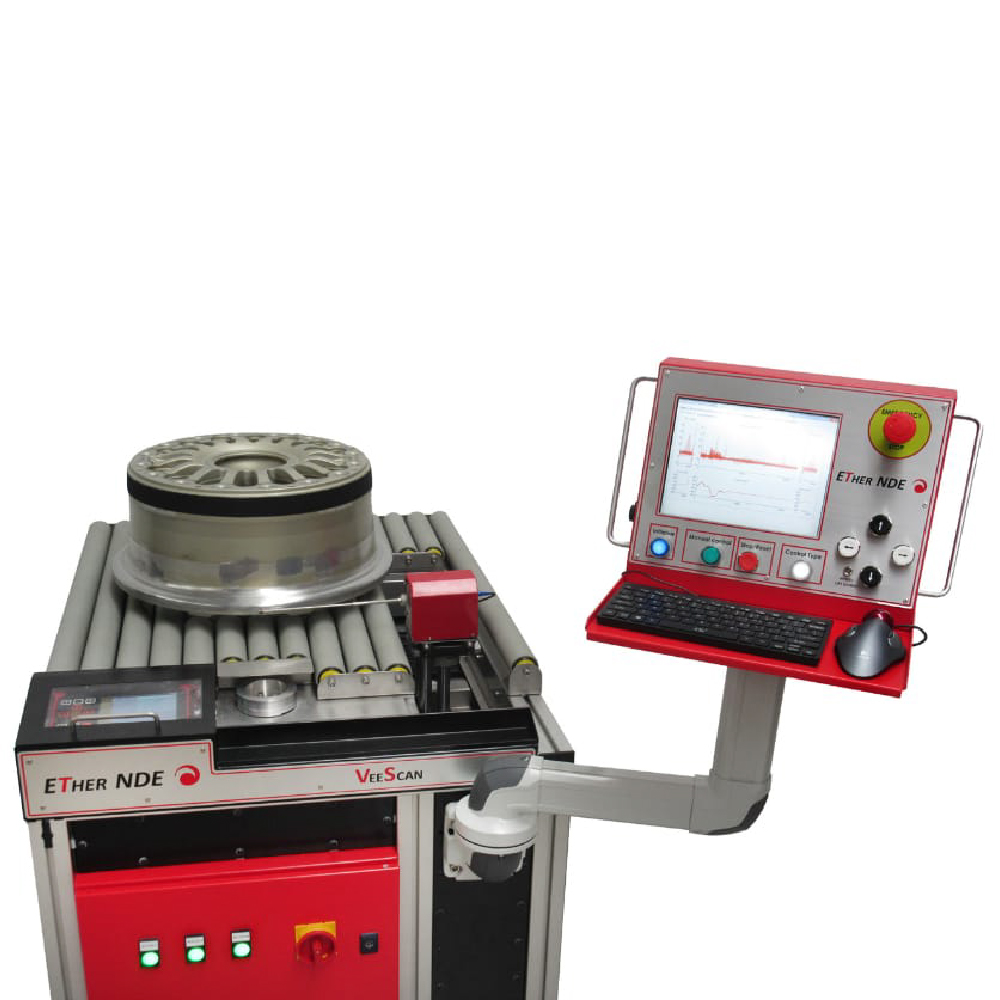

VeeScan Pivot Arm (KIVEE002-H) Dimensions mm (ins)	Height: 1576mm/62” (variable) – from top of rollers to the floor. Width: 850mm/33.5” Depth: 1142 mm / 45”. Weight: Pivot arm 50kg /110lbs Pivot Arm Crate 100kg / 220 lbs
Printer Weight	22kg / 48lbs
Power Supply	110-240V AC 50/60Hz

What’s In The Box?

Standard Kit
Part #	Item
KIVEE001-H	Kit, Veescan Model H. Including:
IVEE001-H	Veescan Model H – Base Unit + Manual – Designed to lift the wheel and fix it with an automatic adapter that uses the wheel inertia to centre it.
IVEE002	Veescan – Eddy Current Flaw Detector, built-in CPU with Control and Analysis Software.
PA09-200B	Probe, Veescan, Head Diameter 9mm, 200kHz (Bridge).
ALL12-L04-025B	Accessory, Lead, Lemo 12-Way to Lemo 4-Way, 2.5m (Bridge) (Veescan).
AVEE001	Accessory, Automatic Wheel Adaptor (Veescan – H).
INSTAL/COMM	Mandatory: Installation and Commissioning – Including 3 days at customer site (excluding travel, hotels and subsistence costs).
Additional Accessories Available
Part #	Item
KAVEE001	Optional: VeeScan 2 years Spare Parts Kit – includes:
AVEE001	Accessory: Automatic Wheel Adaptor (Veescan – H).
AVEE003	Accessory: VeeScan Reference Piece TEC/749/001[2] (VeeScan 6728).
AVEE041	Accessory: Set of Top Rollers (x7 Long, x5 Medium, x3 Short Rolls).
AVEE043	Locating Pins (1 set large, 1 set medium, 1 set small) (6728-02-02-T).
PA06-200FB	Probe, VeeScan, Head Diameter 6mm, 200kHz, Fine (Narrow Shaft) (Bridge).
ALL12R-L04-0258-V	Accessory: LEMO Lead, 12-Way (90 degree) to LEMO 4-Way, 2.5m (Bridge) – fits VeeScan.
AW009	Accessory: Tape – Kapton insulating, 6mm wide x 33m.
