Detailed Overview

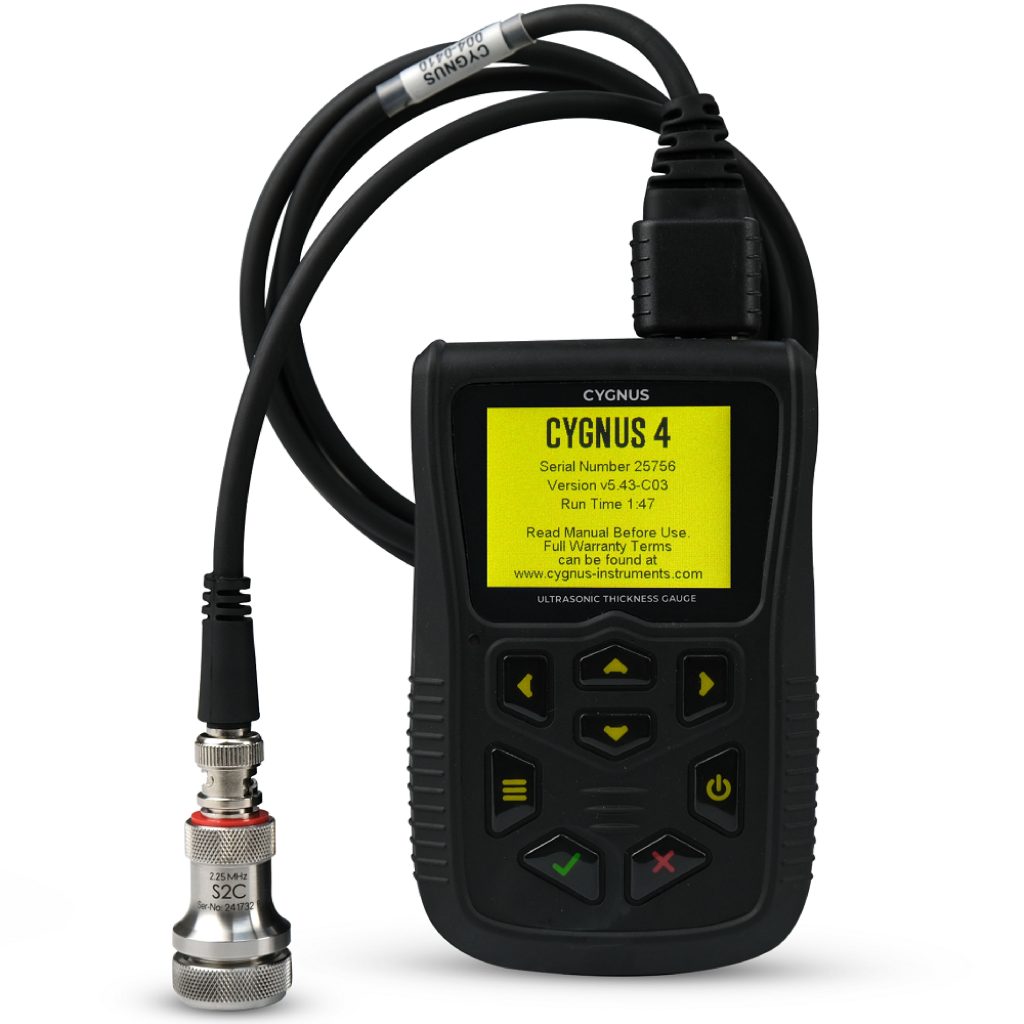

A mid-range multiple-echo ultrasonic thickness gauge with a simple, robust interface designed for ease of use in challenging environments. It measures material thickness accurately through thick coatings by ignoring the coating thickness. The gauge offers a straightforward and reliable tool for corrosion inspection on metal structures, ensuring that critical assets remain in service longer.

Survey mode and a large multi-functional display for simple, fast corrosion inspections.

• Featuring a large color LCD and an intuitive menu, this gauge is optimized for fast, accurate measurements using the multiple-echo technique.
• Its ‘Survey Mode’ is ideal for quickly screening large areas, indicating acceptable or problematic thickness readings clearly via color-coded alerts.
• The package includes the gauge body, couplant, and a protective carrying case.
• The three-button operation minimizes complexity and speeds up measurement time, perfect for high-volume inspection tasks.

Top Features & Benefits

• Multiple-Echo technology for coating tolerance, accurately measuring through coatings up to 20 mm thick.
• Simple three-button operation for minimal training and fast results.
• End-mounted display for easy viewing during rope access and awkward handheld use.
• Shock-proof and water-resistant (IP65/67) housing for maximum field durability.
• Includes Single-Echo mode (uncoated or heavily corroded) and Echo-Echo mode (deep coating) for versatility.
• Exceptional battery life (up to 30 hours) for extended field work.

Primary Uses & Functions

A rugged ultrasonic gauge for non-destructive thickness measurement in demanding industrial settings, providing reliable wall thickness data. Its core function is to facilitate rapid corrosion surveys and integrity assessments on coated metal structures.

Real-World Applications

• General purpose Corrosion Measurement on metals, including steel and iron components.
• Thickness measurement of pitted materials using the Echo-Echo mode for improved accuracy.
• Inspection of pipelines, storage tanks, and ship hulls without the need for prior coating removal.
• Rapid screening of large structural components in civil engineering and marine environments.

Industry Solutions

• Oil & Gas (Corrosion monitoring on platforms and refineries)
• Petrochemical
• Railway
• Automotive
• Mining
• Power Generation (Boiler tubes and structural checks)
• Wind & Solar
• Manufacturing
• Marine Surveying

Technical Specifications

Compatibility

• Robust and simple to use for marine, civil engineering, and general industrial applications.
• Offers Multiple Echo for through-coat, and Single Echo/Echo-Echo for uncoated or highly corroded surfaces, providing high versatility.
• Compatible with standard dual-element ultrasonic probes.

What’s In The Box?

• Multi-Mode ultrasonic thickness gauge unit.
• Batteries (often alkaline).
• Calibration block, couplant, and durable carry case.
• Wrist strap and user manual.

Also Known As

Corrosion Meter, Multiple Echo Tester, Through-Coating Gauge, Survey Mode UT Gauge
