Detailed Overview

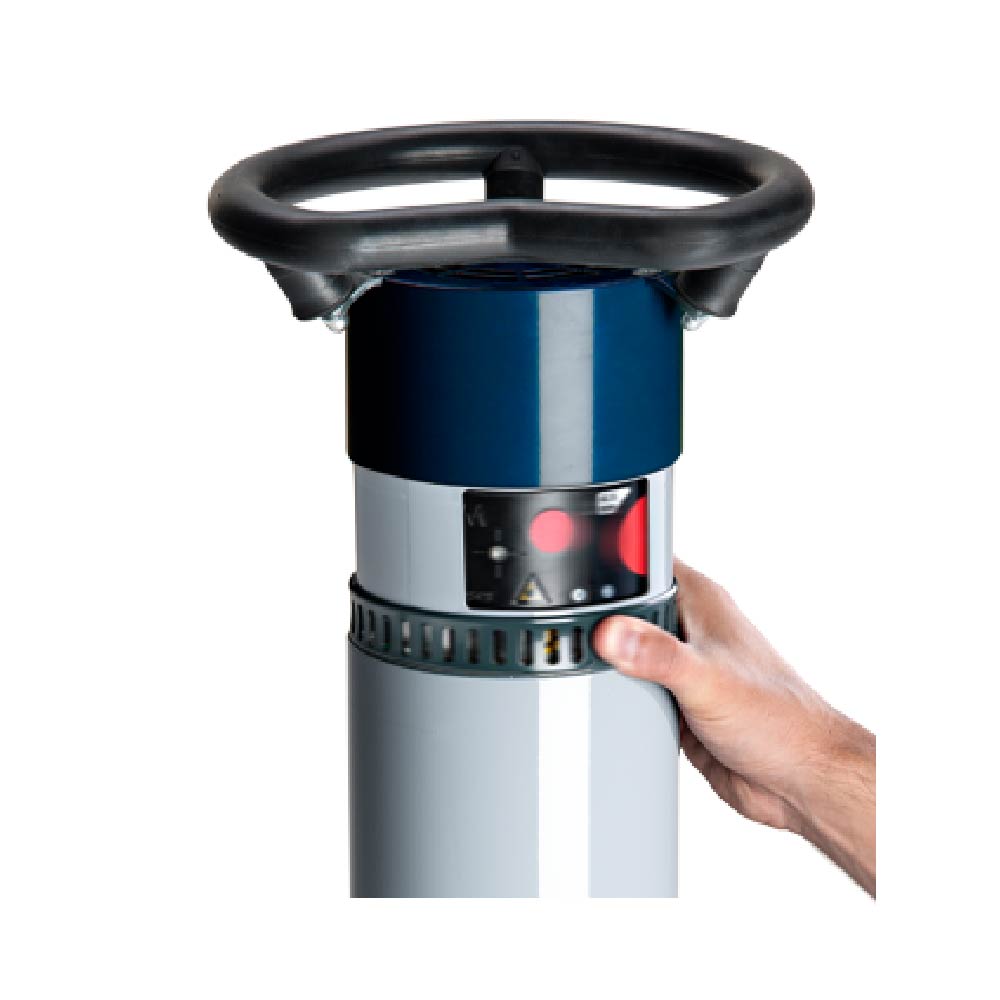

This is the durable directional X-ray tubehead component of a 200 kV portable X-ray system. It contains the tube that emits the high-energy X-ray beam for industrial radiography. The tubehead is designed to provide a stable and intense X-ray output necessary for penetrating medium-thickness materials and delivering high-quality radiographic film or digital images.

The durable, high-output directional tubehead for constant potential field operations up to 200kV.

• This component is the directional X-ray source itself, providing stable, high-energy output up to 200 kV for thick material inspection in various field settings, particularly for weld inspection.
• It is based on Constant Potential (CP) technology, which provides a high-efficiency X-ray output and 100% duty cycle at high temperatures.
• It is paired with a separate control unit (e.g., SITEX control unit) to form a complete system.
• The product is the 200 kV directional tube head and its essential high-voltage cable, built with a robust metal-ceramic tube for extended life.

Top Features & Benefits

• Directional X-ray tubehead component, emitting a 60 degree x 60 degree conical beam ideal for localized inspection.
• Maximum output of 200 kV and up to 10 mA current for penetrating dense materials.
• Designed for high-quality film and digital (CR/DR) radiography, with a small focal spot size for sharpness.
• Robust metal-ceramic tube construction ensures longevity and reliability under harsh field use.
• Features a 100% duty cycle at 30 degree C, allowing for continuous operation with no cooling downtime.
• IP65 rated against dust and water jets.

Primary Uses & Functions

A portable X-ray tubehead component used to generate the X-ray beam for industrial radiography (RT). Its primary function is the non-destructive inspection of medium-thickness welds and materials in the field.

Real-World Applications

• Portable Directional X-Ray Radiography of circumferential and longitudinal welds.
• Inspection of pipelines (up to medium wall thickness) and structural steel welds.
• Used in field NDT applications where mobility, high power, and a stable X-ray source are critical.
• General material thickness and integrity analysis.

Industry Solutions

• Oil & Gas (Pipeline and vessel weld inspection)
• Petrochemical (Process piping)
• Railway (Component inspection)
• Aerospace (Material integrity checks)
• Mining
• Power Generation (Boiler tube welds, critical components)
• Wind & Solar
• Manufacturing (Casting and component quality control)

Technical Specifications

Compatibility

• The directional X-ray tubehead (200 kV) component of a portable system, ideal for general weld inspection and material analysis.
• Requires a separate SITEX control unit and high-voltage cable for safe and correct operation.
• Compatible with both film and digital detector arrays (DR/CR) for imaging.

What’s In The Box?

• SITEX CP200D Directional Tubehead.
• Target window cap (protective cover).
• Connecting cable for control unit (high-voltage cable, control unit sold separately).
• Shipping cap and robust carrying/storage case.
• User documentation.

Also Known As

Mobile X-ray Generator, Weld Radiography Source, Directional X-ray Head, CP200D
