Detailed Overview

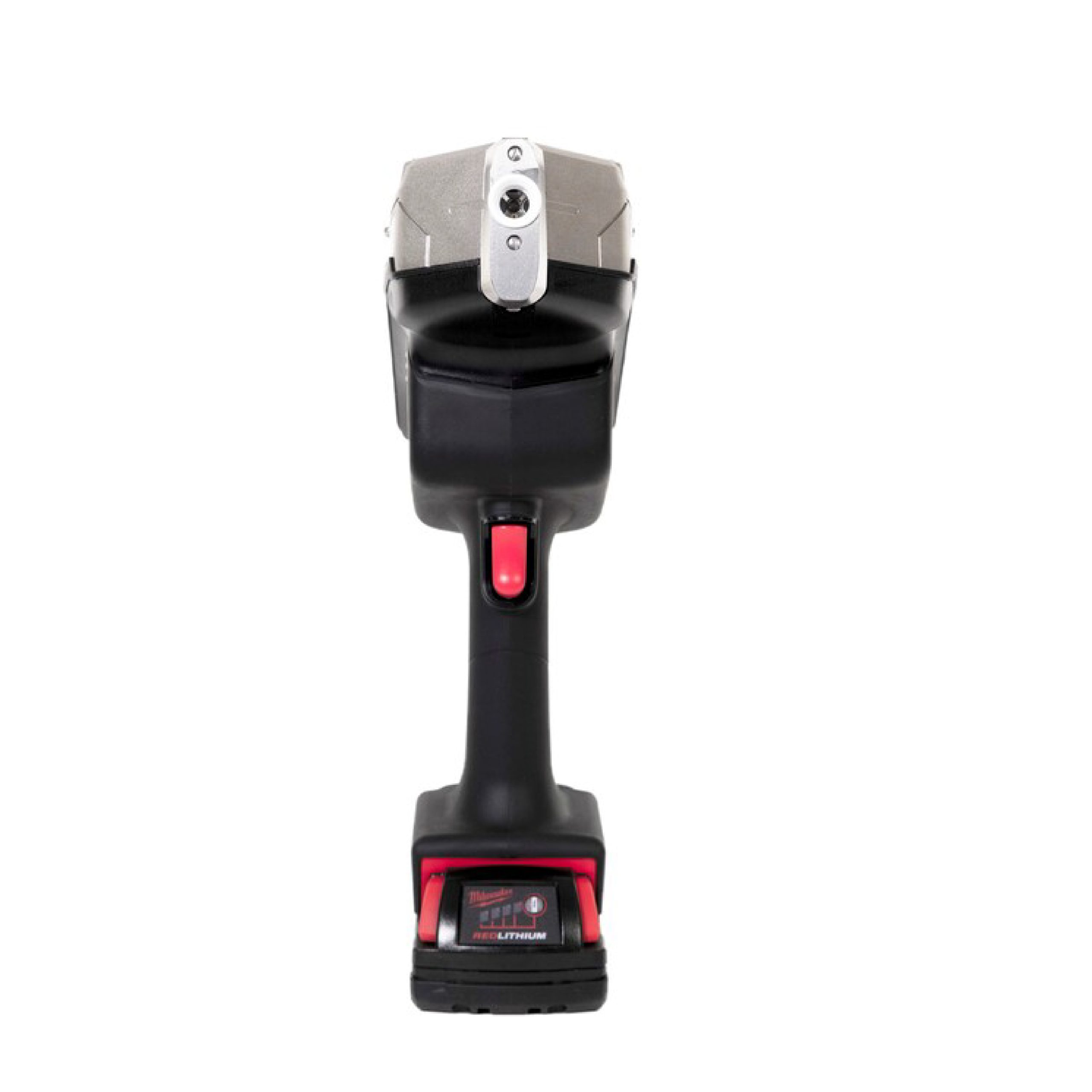

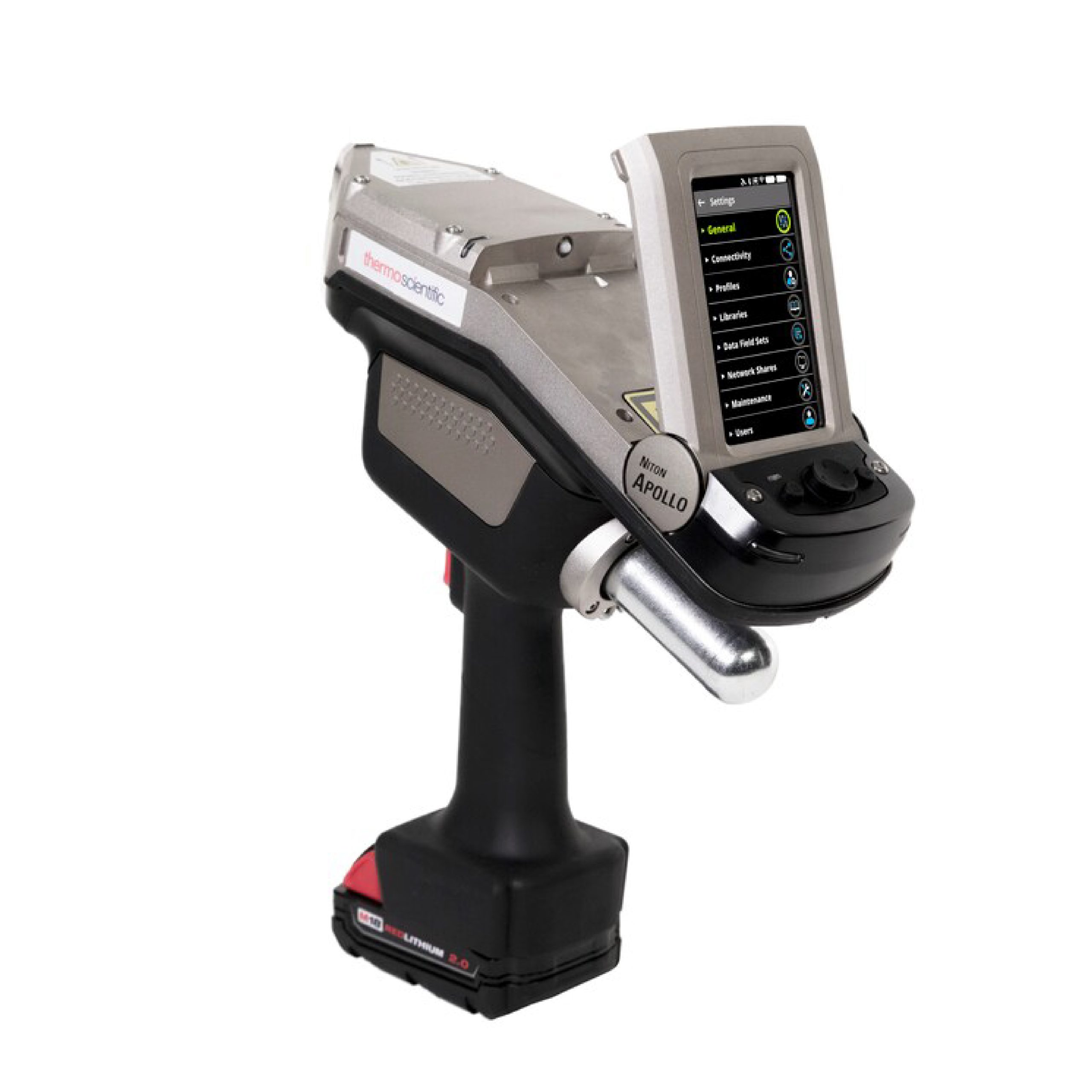

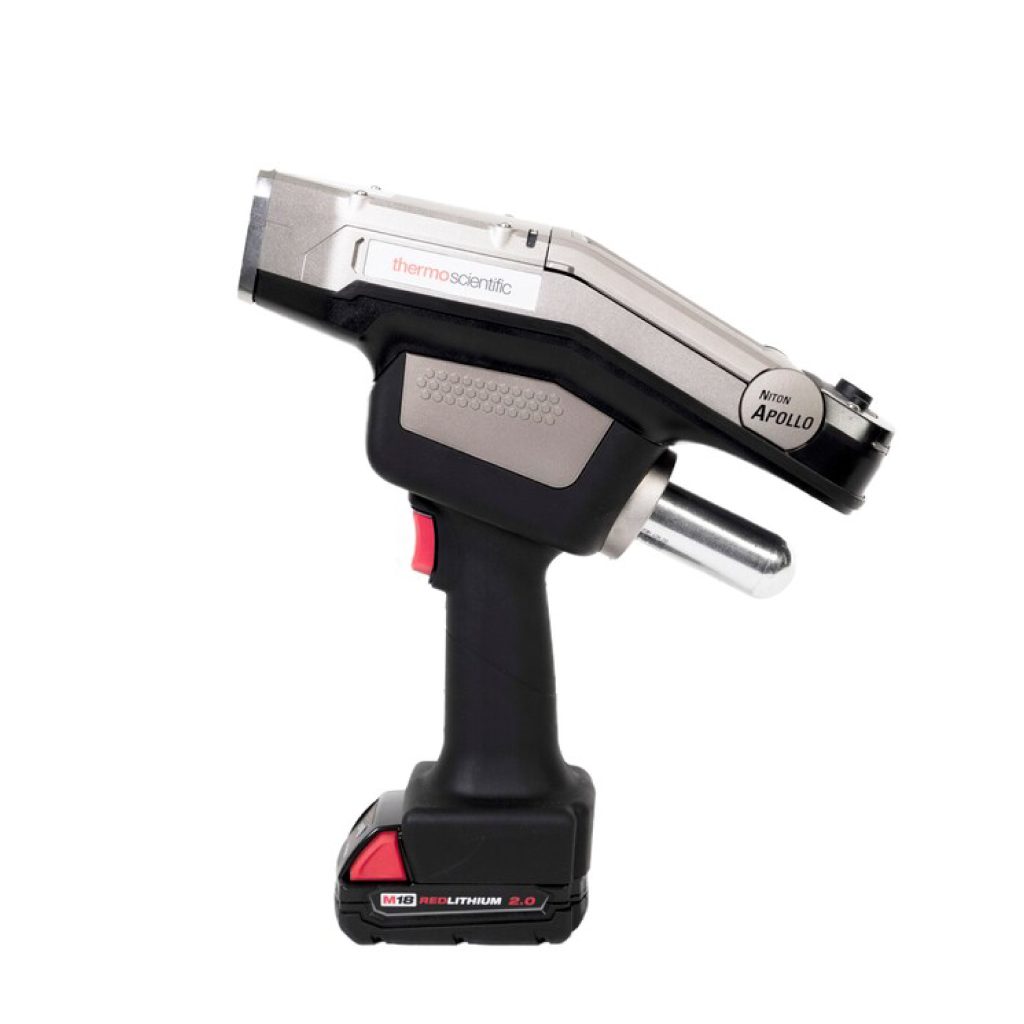

Confidently perform elemental analysis with the Thermo Scientific™ Niton™ Apollo™ handheld LIBS analyzer. When carbon detection and mobility are top of mind, industrial businesses rely on the Niton Apollo analyzer for excellent performance and enhanced productivity. Identify low alloy/carbon steels and L and H grade steels. This analyzer transforms a traditional cart-mounted optical emission spectroscopy (OES) system into a highly portable, easy-to-use handheld analyzer.

Grade A Accuracy for Critical High-Temperature Measurement

Features

• 1064nm laser
• WiFi enabled
• Macro and micro cameras
• Hot swap battery (Milwaukee Tool™ compatible)
• Tilting, color touchscreen
• Directional keys
• Chamber pressure, spectral type, light/dark sensor safety interlocks
• Password protected security
• IP54 certified (splash/dust proof)
• Reduced aperture & compact tapered-nose design

Applications

• Determine alloy composition and grade for a wide range of metallurgical samples
• Calculate carbon equivalency to determine piping weldability
• Verify critical assets, such as, piping, valves and reaction vessels for Positive Material Identification (PMI)
• Inspect materials at receiving, in-process fabrication and outgoing Quality Control (QC)
• Qualify Material Test Reports (MTR)
• Prevent contaminated scrap from entering the supply stream
• Detect tramp and trace elements to meet regulatory standards
• Enhance productivity by measuring challenging structural shapes and sizes, including 1/4″ piping, 1/4″ bars, and larger weld wires
• Maximize efficiency and bypass additional costs and time spent with on-site small-part measurement capabilities
• Obtain unprecedented precision with a refined tapered nose and Argon seal, increasing shots per cylinder and return on investment

Technical Specifications
