GammaTec GamCPR System (Close Proximity Radiography)

The GamCPR is a highly advanced Close Proximity Radiography (CPR) system designed to dramatically reduce the primary beam and scattered radiation to safe levels. By utilizing targeted collimation and specialized shielding, it minimizes safe working distance barriers, preventing production downtime and allowing simultaneous operations on active sites.

Method: Close Proximity Radiography

Tags: Gamma Ray, NDT Accessory, Radiography, Shielding

Stock Code: SHIELD-NCS0304

Brand: GammaTec NDT Supplies SOC Ltd

Description

Overview

Close Proximity Radiography (CPR) is “the conducting of radiography in close proximity to authorized radiation workers, members of the public or radiation-sensitive monitoring devices in such a way as to ensure continuous operations.”

The GamCPR provides massive cost and productivity benefits across a variety of applications. It is ideal for use during facility shutdowns, plant maintenance and turnarounds, in areas utilizing radiation-based technologies for process measurement, and on new build projects (both on-shore and off-shore) to accelerate construction programs. With GamCPR, you can safely continue 24-hour production while vital NDT inspection takes place.

Key Features

Massively Reduced Safe Working Distance:

Safe working distances can be reduced to just a 1m radius*, drastically lowering production downtime by allowing parallel operations in the same facility without radiological risks to surrounding workers. (*Depending on source strength and number of Shielding Mats used).

Portable Se-75 Projector System:

At the core is the lightweight, portable Exertus Selen Circa 80 Isotope Projector, weighing only 8.8kg, making it remarkably easy to deploy across complex plant geometry and elevations.

Flexible Shielding & Rigging:

Features flexible silicone mats impregnated with Kevlar-reinforced shielding materials, paired with a user-friendly clamp and stand system to adapt rapidly to both contact and stand-off (ellipse) shots.

Dedicated SWD Calculator:

Includes a unique Safe Working Distance Calculator that automatically determines the barrier distance, dose rate at the barrier, and exact number of shielding mat layers needed for both Contact and Stand-off shots.

System Configurations

The GamCPR system is highly adaptable. Below are some of our most common configurations. We also work directly with customers to develop custom configurations for unique geometries.

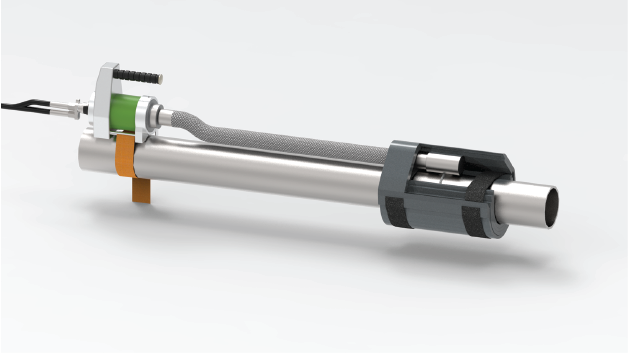

Contact shot using collimator and shielded guide tube

Contact Shot w/ Collimator & Guide Tube

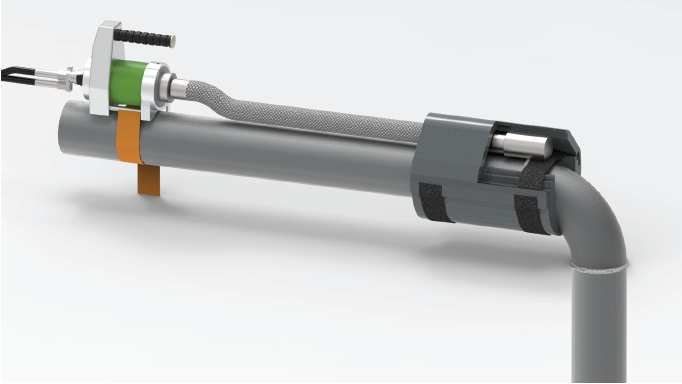

Elbow Pipe Contact Shot

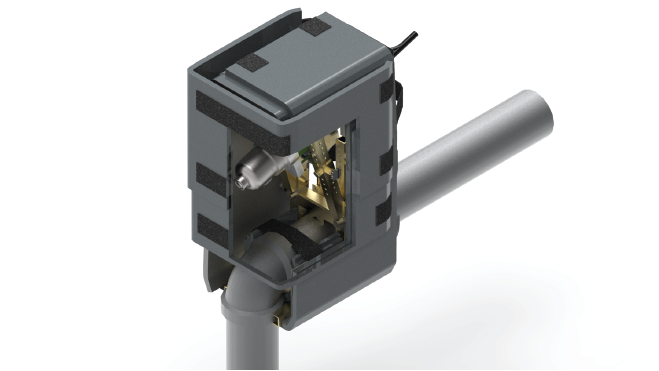

Elbow pipe stand-off shot backwards ellipse

Elbow Pipe Stand-Off (Backwards Ellipse)

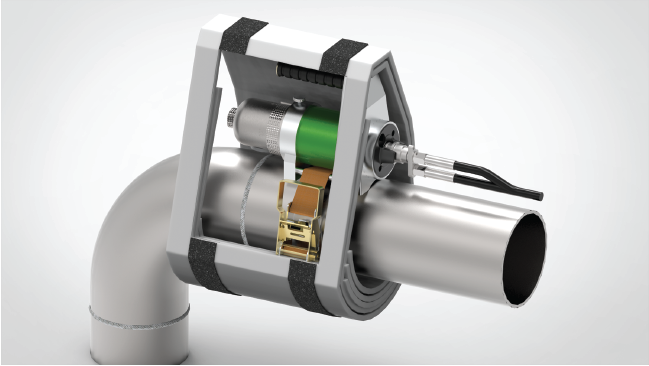

Elbow pipes Contact Shot – Projector wrapped

Elbow Pipes Contact Shot (Wrapped)

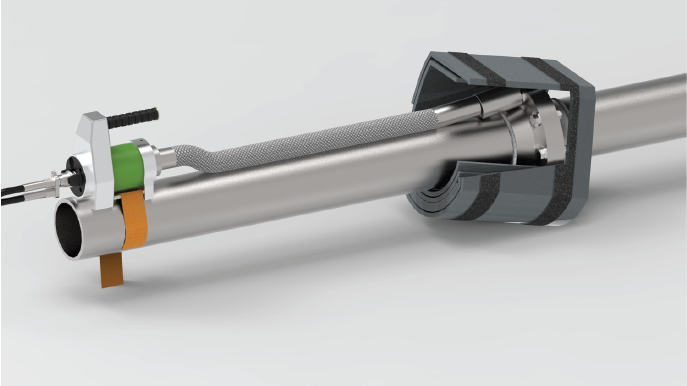

Flange Pipes Contact Shot

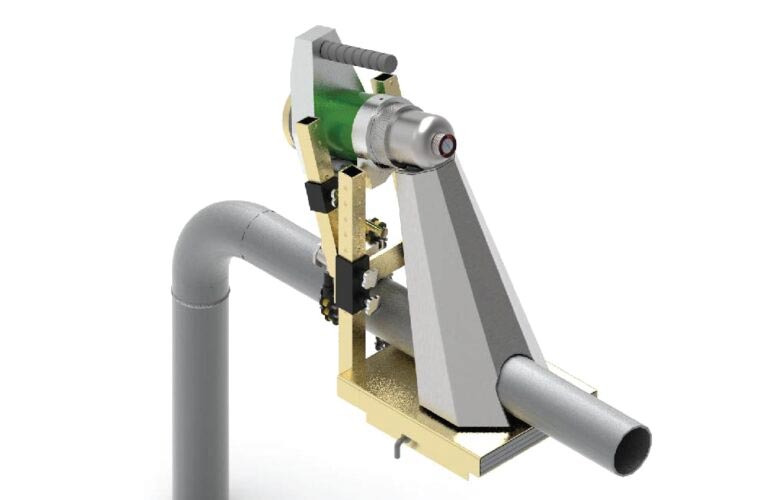

Stand-Off Shot Forward Ellipse

Technical Specifications

Category / Component	Details
Exertus Selen Circa 80 Isotope Projector
Construction Standards	ISO 3999:2004 Compliant
Isotopes	Se-75 under special form (Ir-192 half-life: 119.8 days)
Activity	Se-75 – 2.96TBq (80Ci)
Surface Dose Rate	Max 2mSv/h
Total Weight	8.8kg (19.4lb)
Collimation (CP80 Aperture)
Half Value Layers	Se-75: 7.2
Material Type	Tungsten Heavy Alloy
Beam Size	38° Conical, Side Throw
Aperture Options	11 x 11mm \| 11 x 37mm \| 18 x 18mm \| 20 x 32mm
Shielding Mats & Guide Tubes
Dimensions	915 x 305 x 9.5mm / 305 x 305 x 12.7mm
Shielding Equivalence	Equivalent to 3.3mm Pb
Weight	10.8kg (approx) or 4kg
Temperature Range	-85°C to 200°C
Guide Tube	Flexible Tungsten Shielding Guide Tube 500mm

Optional Accessories

Customized lengths of Shielded Guide Tubes
Custom moulded shielding solutions built to specific requirements
Laser Pointer kit to accurately determine focal points
Contact us for detailed bespoke kit options

What’s in the Box

Exertus Selen Circa 80 Isotope Projector
Assorted Flexible Tungsten/Pb Shielding Mats (Kevlar Reinforced)
Shielding Cassette and Purpose Designed Cone
Collimator / Shielded Guide Tube Assembly
Adjustable Clamps, Support Legs, and Ratchet Stand System

**Errors and omissions excepted (E&OE)
