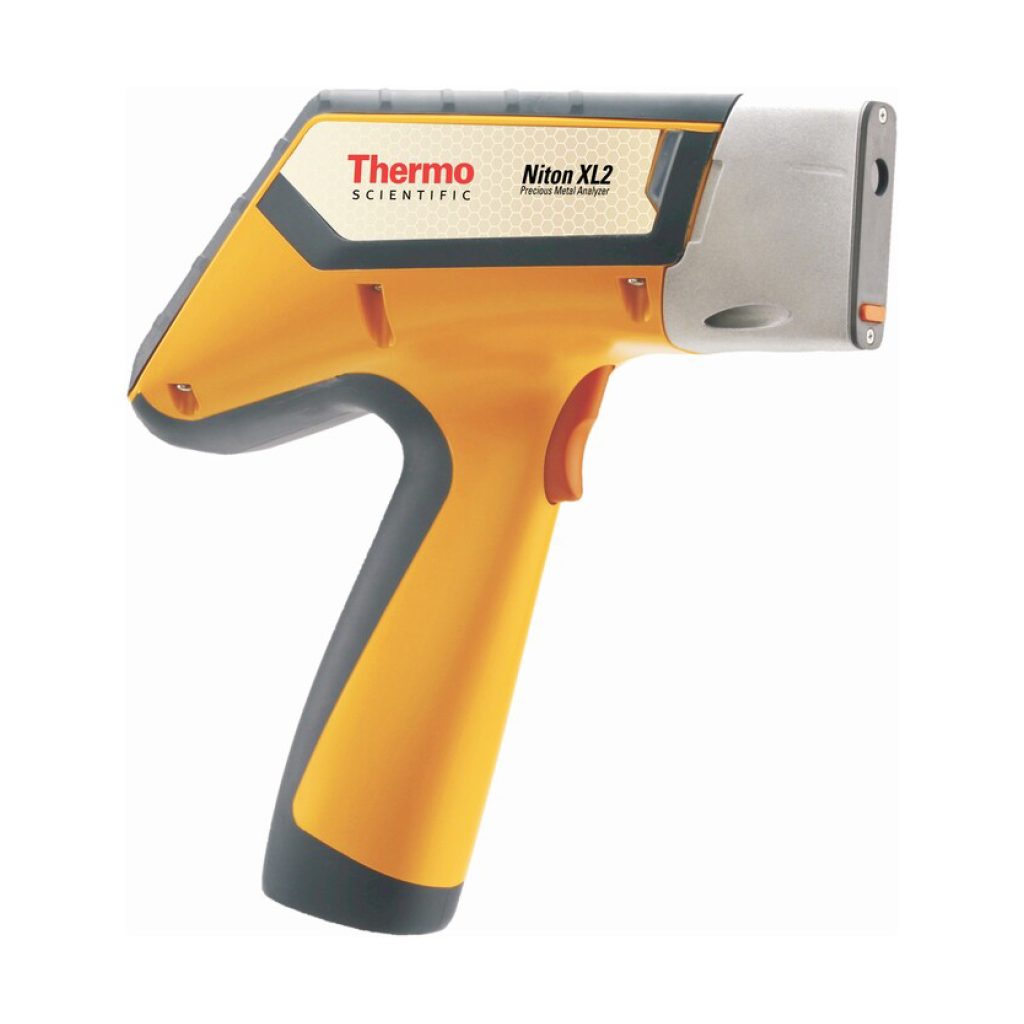

Thermo Fischer's handheld XRF gold analyzer on a white background, from the main view

Niton XL2 Handheld XRF Precious Metal Analyzer

Measure gold purity with precision, uncover counterfeit or gold-plated items, and identify the full composition of precious metals effortlessly using handheld XRF analyzers. Supplier: Spectrometer

  • Stock Code: xxxx-1
Description

Detailed Overview

In a market where gold prices rise and fall sharply, even a slight miscalculation in composition can cost you dearly. The Thermo Scientific™ Niton™ XL2 XRF Precious Metal Analyzer offers a rapid, highly accurate, and nondestructive way to verify the purity and chemistry of gold and other valuable metals. It swiftly identifies counterfeit and gold-plated items and reveals the exact elemental makeup of coins and jewelry—giving you absolute confidence in the material’s true value.

Built for speed and reliability, the Niton XL2 delivers precise results in seconds without the hassle of switching calibrations for different metals such as gold (Au), silver (Ag), platinum (Pt), or palladium (Pd). It outperforms traditional acid testing with greater accuracy and speed, and rivals the precision of fire assay—without the complexity.

With Thermo Scientific AuDIT™ technology, it effectively detects most gold-plated pieces. It also pinpoints trace alloying and hazardous elements that influence both valuation and refining decisions. Fast, dependable, and user-friendly—this analyzer reshapes precious metal testing with clarity and confidence.

Features

  • Standard analytical range: 22 elements from S to U (varies by application).
  • Point and shoot simplicity—very easy to use even by nontechnical personnel.
  • Ideally suited for retail environments.
  • Nondestructive analysis with near-instantaneous results.
  • Ergonomic design.

Technical Specifications

Description Niton XL2 XRF Precious Metal Analyzer
Applications Non-destructive method to test the purity and chemistry of precious metals
Detector Type High-performance Semiconductor
Tube Type Ag anode 45 kV maximum, 80µA maximum
Tube Voltage 45 kV
Max. Power 2W
Power Consumption 100µA
System Electronics 400 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing
System Details 4096 channel MCA; 64MB internal system memory/128MB internal user storage
Operating System N/A
Data Memory 64MB internal system memory/128MB internal user storage
Data Storage Internal >10,000 readings with spectra
Data Entry Touch-screen keyboard, user-programmable pick lists, optional wireless remote barcode reader
Data Transfer USB, Bluetooth and RS-232 serial communication
Display Type Fixed angle, color, touch-screen display
Dimensions (L x W x H) 10.25 x 11 x 4 in. (256 x 275 x 100 mm)
Weight (English) 3.0 lb., 5.8 oz.
Weight (Metric) 1.53 kg
IP Rating IP54 (splash and dust proof)
Licensing Registration: Varies by region. Contact your local distributor.
Security Features Password-protected user security
Standard Accessories Locking shielded carrying case; Shielded belt holster; Two 6-cell lithium-ion battery packs; 110/220VAC battery charger/AC adaptor; PC connection cables (USB and RS-232); Thermo Scientific™ Niton Data Transfer (NDT™) PC software; Safety lanyard; Check samples/standards
Optional Accessories Portable test stand; Stationary (bench-top) stand; Mobile test stand; Welding mask; Soil testing guard
Certifications/Compliance CE, RoHS
Available Analytical Modes Alloy modes: metal alloy, electronics alloy, precious metals. Bulk modes: mining, soil. Plastic modes: RoHS plastics, toy and consumer goods plastics, Thermo Scientific TestAll, painted products. Custom modes: upon request
Unit Size Each

FAQ



What does ‘Grade A’ accuracy mean?

Grade A is a classification denoting a tighter tolerance on the wire’s millivolt output compared to standard or Grade B wire, ensuring a higher level of measurement accuracy across the temperature range.

Why is this described as ‘hard’ wire?

‘Hard’ refers to a stiffer, less pliable wire construction compared to ‘soft’ or fine-strand wire. This makes it more suitable for being held rigidly in place or for applications where mechanical stability is needed.

Is the glass braid insulation susceptible to water damage?

Yes, while the glass braid is high-temperature resistant, it is porous and will absorb water, which can potentially cause a temporary short circuit. It should be kept dry or protected in wet conditions.
