The HPX-PRO CR System is built for extreme portability in rugged environments and improved productivity in the field. It’s a lightweight CR imaging solution that is quick to deploy and produce high-quality images utilizing a single-pass scan/erase protocol. With INDUSTREX Digital Viewing Software, the HPX-PRO is designed to get you set-up and imaging fast, with batch mode capability to keep up-to-speed with extreme process conditions like pipeline imaging. From hardware to software, to deep in the field and instant image sharing, the HPX-PRO is a complete system, designed to keep you moving down the line. Supplier: Carestream NDT
The HPX-Pro is a rugged, field-deployable Computed Radiography (CR) scanner designed to bridge the gap between film and digital NDT. Built for extreme environments, it digitizes X-ray and Gamma-exposed phosphor plates on-site, eliminating the need for darkrooms
Field Autonomy: Features a lightweight, 16 kg (35 lb) aluminum chassis with vibration-damping feet and battery-powered operation (4 hours standby).
Environmental Protection: Utilizes filtered, positive air flow to manage temperature and overhead scanning optics to prevent gravity-driven dust contamination.
High-Resolution Imaging: Offers selectable pixel pitches of 25 µm, 50 µm, and 100 µm to meet strict industry code requirements.
Advanced Processing: Ships turnkey-ready with INDUSTREX software and EDGE image filters for grayscale equalization and sharpening.
| Specification | Detail |
|---|---|
| Feed Mechanism | Internal horizontal roller pairs |
| Connectivity | Ethernet connection standard (1 Gb/s) |
| Network | DICOMDE compliant |
| Air Flow | Filtered, positive air flow in scanner for temperature control |
| Scanning Optics | Located above imaging area eliminating gravity driven particulates |
| Erase | LED erase lamps for high efficiency and low power consumption |
| Maintenance | User serviceable wear parts |
| Calibration | Fully factory calibrated and ready to operate |
| Pixel Pitch | 25 µm, 50 µm and 100 µm |
| Plate Sizes | Maximum 6 in (15 cm) width x maximum 60 in (152 cm) length |
| Software | INDUSTREX (Turnkey ready, Windows 10 64 bit) |
| Filter | Carestream’s EDGE image filter offers users a choice of display filters modifying the original image data. Image can be sharpened or enhanced with grayscale equalization. |
| Monitor | Laptop, 3MP (color) or 5MP (monochrome) |
| Chassis | Rigid aluminum construction with vibration damping feet |
| Power | 100-240 VAC (Automatic Level Sensing) |
| Battery | 24 volt standard tool battery |
| Battery Life | 4 hours standby / 45 minutes active scanning and erasing per battery |
| Warranty | 1 year parts and labor |
| Installation | Ships complete and can be easily and quickly installed on-site by customer |
| Dimensions | 16 in (40.6 cm) x 13 in (33 cm) x 12 in (30.5 cm) |
| Weight | 35 lb (16 kg) |
CR Scanner, Mobile Radiography Unit, Digital X-ray Processor, Film-to-Digital Scanner, NDT CR System

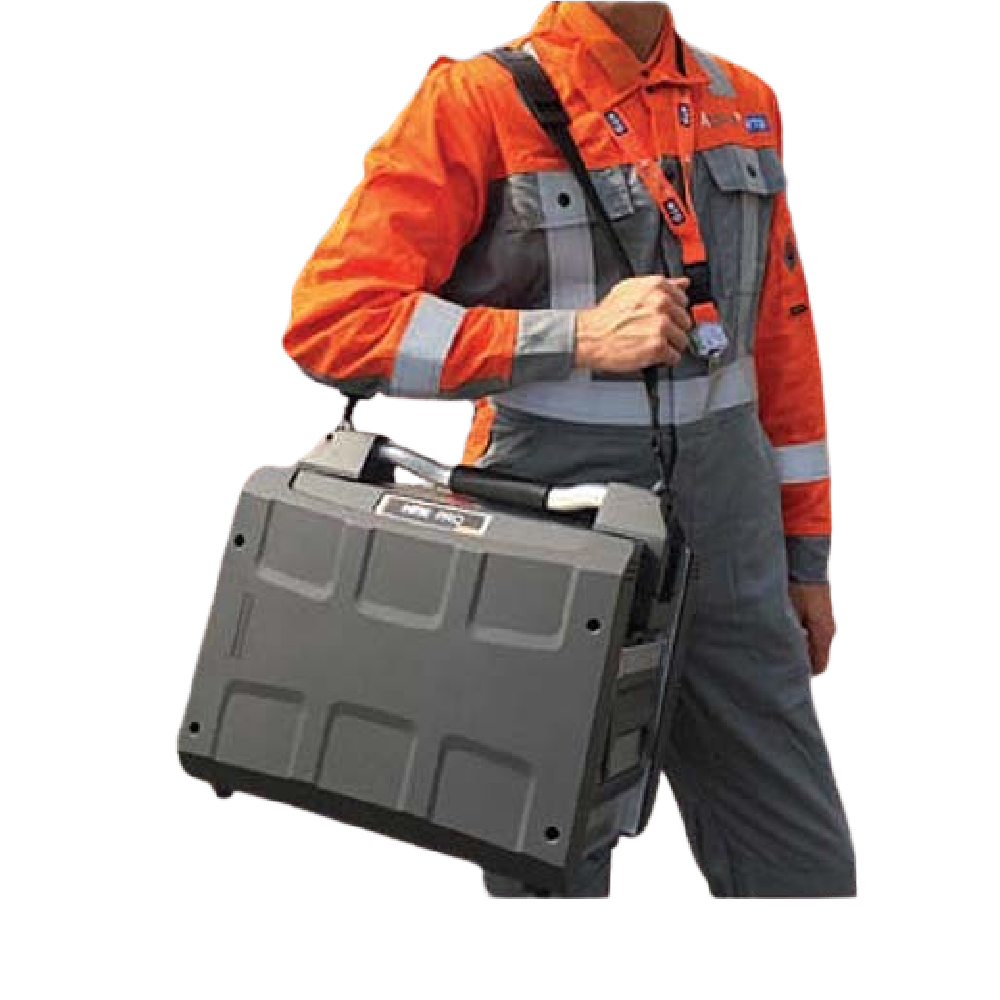

It is designed as a compact, rugged, and field-deployable system, making it easy to transport the CR plate reader to various on-site inspection locations.
The technician exposes a CR plate, which is then fed into the portable scanner (reader) on-site to convert the latent image into a high-resolution digital file.
