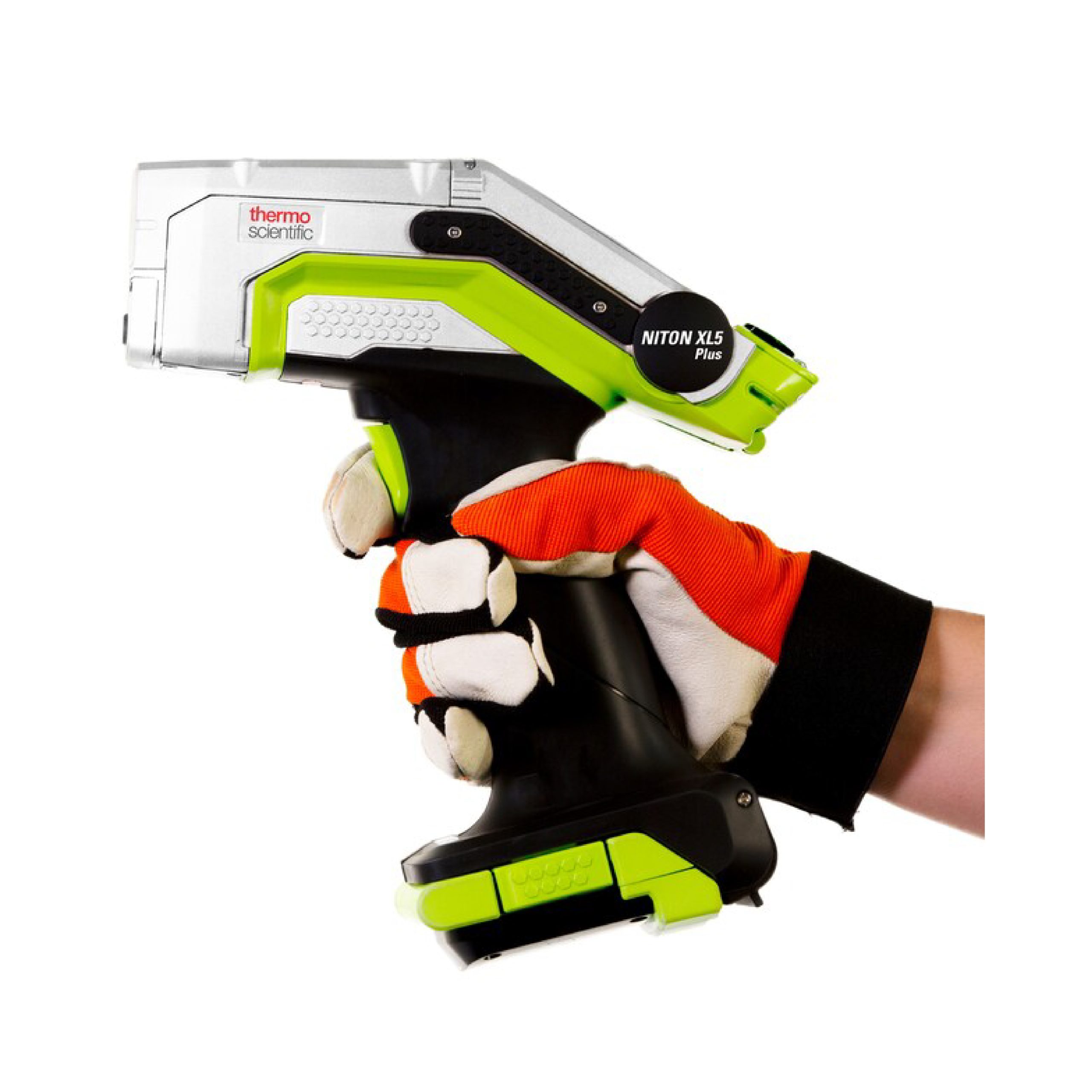

Side view of the Niton XL5 Plus Handheld XRF Analyzer in a technicians hand, on a white background
Niton XL5 Plus High-Performance Handheld XRF Analyzer - Image 3

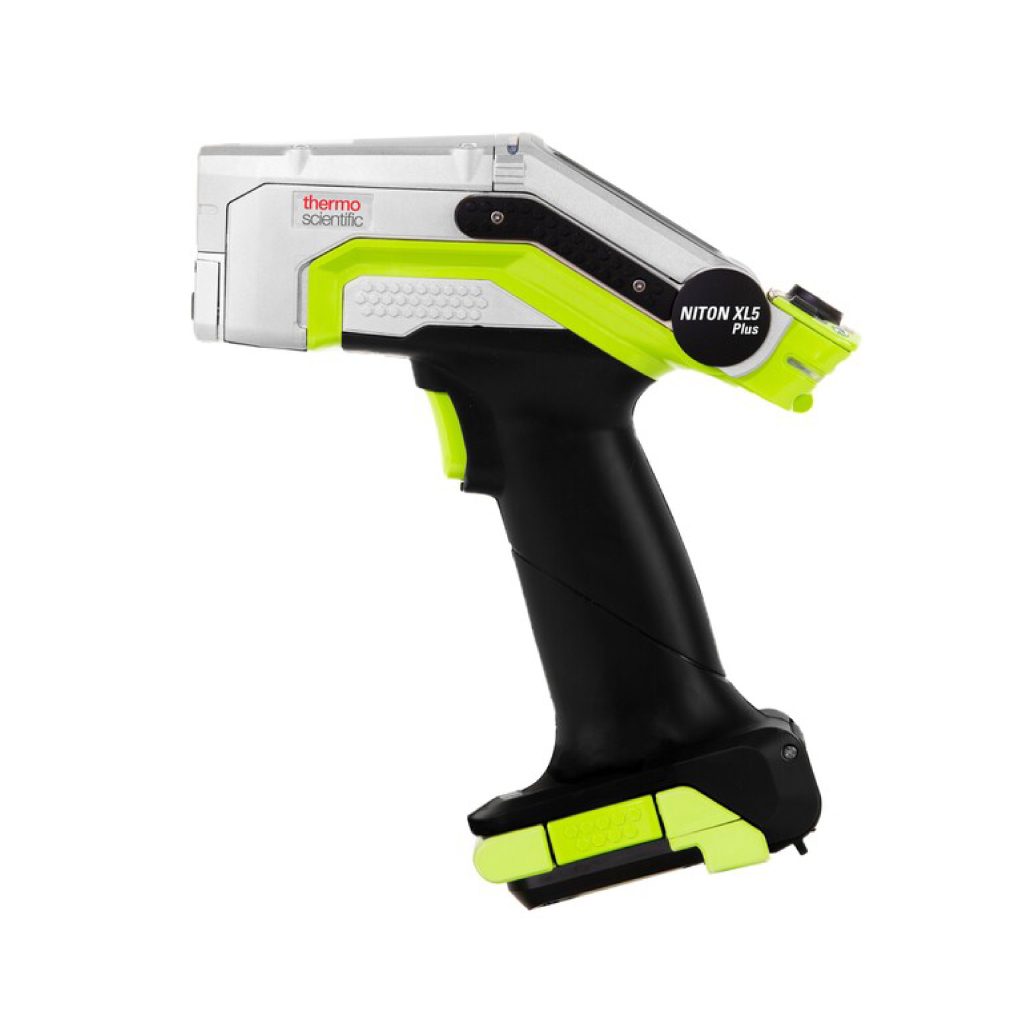

Niton XL5 Plus High-Performance Handheld XRF Analyzer

Experience unmatched handheld XRF performance, even for light elements—the Niton™ XL5 Plus is the smallest, lightest, and most powerful analyzer of its kind. Supplier: Spectrometer

  • Stock Code: xxxx-3
Description

Detailed Overview

The Thermo Scientific™ Niton™ XL5 Plus handheld XRF analyzer pushes the limits of portable elemental analysis, delivering exceptional precision even when testing lightweight elements. Designed for versatility and speed, it empowers users to identify pure metals and alloys, detect tramp elements, and capture detailed geochemical data—all with one compact, rugged device. Industries choose the Niton XL5 Plus not just for its low detection limits, but for its rapid results, broad material scanning capabilities, and unparalleled performance in the field.

Features

  • 5W X-ray tube
  • Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
  • Lightweight design (2.8 lbs/ 1.3 kg)
  • Miniaturized nose
  • WiFi enabled
  • Macro and micro cameras
  • Hot swap battery

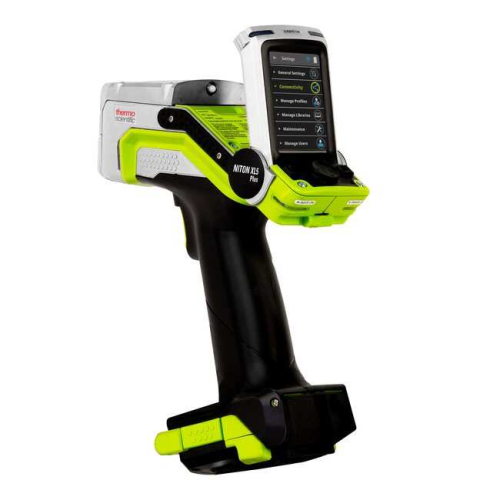

  • Tilting, color touchscreen
  • Directional keys
  • Password protected security
  • IP54 certified (splash/dust proof)

Applications

  • Verification of metals and alloys in manufacturing operations
  • Non-destructive field inspections for positive material identification
  • Point-and-shoot sorting at scrap recycling operations
  • Coating thickness measurements for single or binary metal layers
  • Precious metal assay of bullion and jewelry
  • Real-time geochemical analysis for mining exploration
  • On-site heavy metal screening of polluted soils
  • Screening of hazardous substances in consumer goods
  • Custom applications on demand

Technical Specifications

Feature Specification
Certifications/Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
Data Entry Touchscreen keyboard
User customizable data entry
Optional wireless remote barcode reader
Data Storage 512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
Data Transfer WiFi, USB-c
Dimensions (L x W x H) 9.54 x 8.19 x 2.67 in. (24.23 x 20.8 x 6.78 cm)
Display Type Tilting, color, resistive touchscreen display
Global Positioning System Internal GPS and optional external GPS (via Bluetooth) GPS data are included with the sample information.
NOTE: The GPS function is an optional feature.
Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
Libraries Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards. Users may create, clone and edit libraries.
Licensing Varies by region. Contact your local distributor.
Operating Environment Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
Humidity: 10% to 90% relative humidity non-condensing
Operating System Linux
Optional Accessories Portable test stand
Mini test stand
Backscatter shield
Hotwork stand off
Soil guard
Belt holster
Bluetooth printer
Power Consumption 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply. Hot swap functionality keeps analyzer powered during battery replacements.
Security Features Password-protected user security
Software Support software: NitonConnect PC software
Spot Size Standard: 8mm collimation
Optional: 3mm small-spot collimation
Standard Accessories Locking shielded carrying case
Two (2) lithium-ion battery packs
One (1) 110/220 VAC battery charger/AC adaptor
Check samples
Safety lanyard
PC connection cable (USB)
System Details Built-in standardization and health check verify system integrity and operating conditions
Type XL5 Plus Handheld XRF Analyzer
Weight (English) 2.8 lb. with battery
Weight (Metric) 1.3 kg with battery
X-Ray Source Type X-ray tube: Ag anode (6-50kV, 0-500uA, 5W max)
Filter: Six (6) position filter wheel for enhanced spectral range coverage
Current: Dynamically adjustable current for optimal sensitivity on every analysis
Detector Type High count rate, high resolution, extra large area silicon drift detector (1μm graphene window). Detector ProGuard protection included.
Unit Size Each

Compatibility



What’s In The Box



Also Known As



FAQ

What does ‘Grade A’ accuracy mean?

Grade A is a classification denoting a tighter tolerance on the wire’s millivolt output compared to standard or Grade B wire, ensuring a higher level of measurement accuracy across the temperature range.

Why is this described as ‘hard’ wire?

‘Hard’ refers to a stiffer, less pliable wire construction compared to ‘soft’ or fine-strand wire. This makes it more suitable for being held rigidly in place or for applications where mechanical stability is needed.

Is the glass braid insulation susceptible to water damage?

Yes, while the glass braid is high-temperature resistant, it is porous and will absorb water, which can potentially cause a temporary short circuit. It should be kept dry or protected in wet conditions.

**Errors and omissions excepted (E&OE)
