Detailed Overview

A High-Resolution (HR) Digital Radiography (DR) detector, specifically the Go-Scan 1510 HR, offering an optimal balance of image size and portability with its CMOS technology. It is used to capture extremely sharp, detailed X-ray images for flaw detection in critical materials. This high-resolution device provides the solution for detecting minute indications and subtle flaws, satisfying the stringent image quality requirements of aerospace and high-end industrial Non-Destructive Testing (NDT).

Ultra-high resolution imaging for critical small-area inspection with microscopic detail.

• This detector offers a 99 ?m pixel pitch resolution, superior for detailed inspection of small welds, intricate electronic components, or fine cracks where flaw size is critical.
• The higher pixel density ensures minute detail is captured for precise analysis in demanding applications.
• The system is an integrated solution featuring CMOS Active Pixel technology for high-speed, low-noise performance.
• The package contains the High-Resolution Flat Panel Detector (FPD), an external power/control box, and the necessary image acquisition and processing software.

Top Features & Benefits

• High-Resolution (HR) CMOS Digital Radiography (DR) flat panel detector.
• Active Imaging Area of 102 x 153 mm (4 x 6 in).
• Features 99 ?m (micron) pixel pitch for optimal image defect visibility.
• Lightweight design with integrated Wi-Fi for robust wireless field operation.
• Battery operated with approximately 7 hours of continuous operation.
• Optimized for high-detail inspection where fine defects in materials are critical.

Primary Uses & Functions

A high-resolution portable detector for digital radiography (DR), providing detailed X-ray images for non-destructive evaluation (NDE) in applications requiring superior detection of small flaws, such as those found in aerospace and precision manufacturing.

Real-World Applications

• High-resolution Digital Radiography (DR) imaging for microscopic flaw detection.
• Inspection of small diameter pipe welds, intricate castings, and aerospace composite structures.
• NDT for quality control and critical defect detection in high-value components.
• Ideal for use with low X-ray energy sources and battery-operated generators.

Industry Solutions

• Aerospace & Aviation (Weld and composite inspection)
• Oil & Gas (Small bore piping inspection)
• Petrochemical
• Automotive
• Power Generation
• Manufacturing (Precision electronics and castings)

Technical Specifications

Compatibility

• High-Resolution (HR) DR panel for demanding NDT applications requiring superior image detail.
• Used seamlessly with Teledyne ICM’s CPSERIES portable X-ray generators for a fully integrated solution.
• Compatible with Sherlock NDT (Teledyne ICM’s) image acquisition and processing software suite.
• Supports GigE (Wired) and Wi-Fi (Wireless) data transfer.

What’s In The Box?

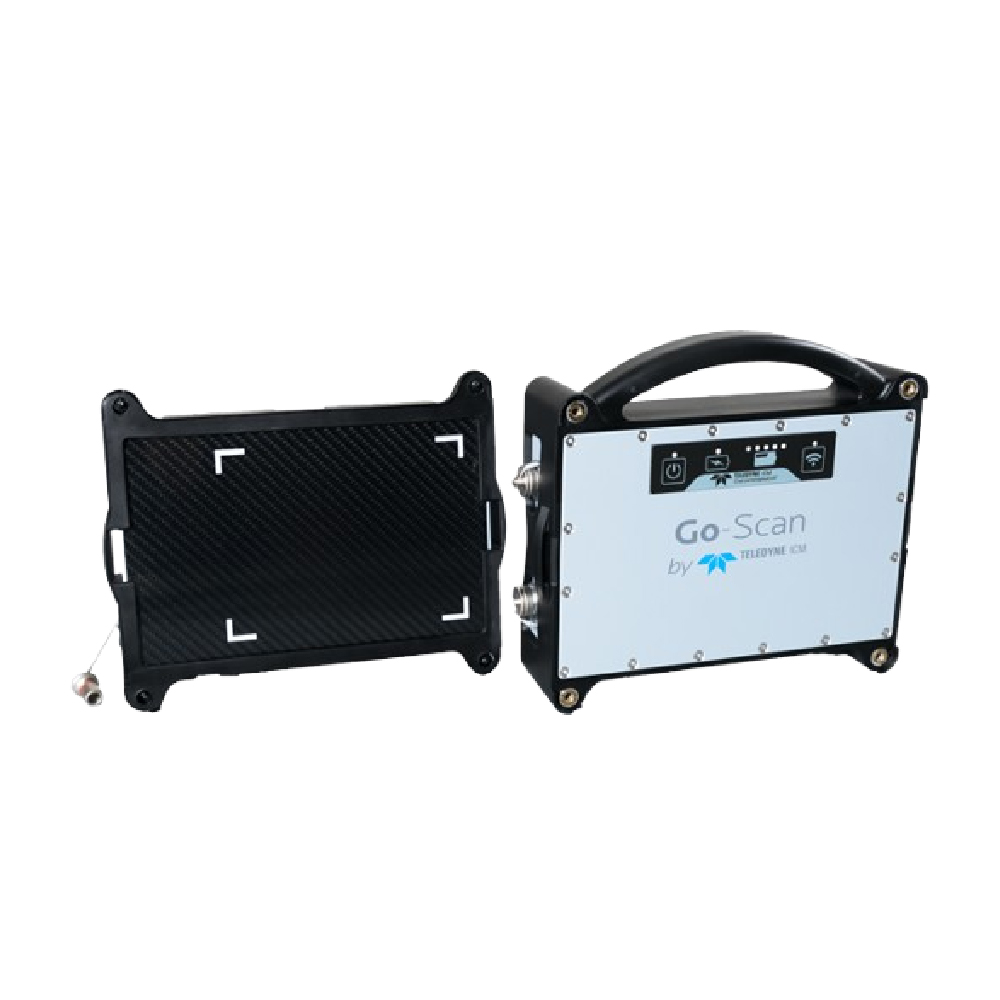

• Go-Scan 1510 HR DR Panel.
• External Power/Com Box (for wired operation).
• Rechargeable Li-ion battery pack and charger.
• Sherlock NDT Image acquisition software suite.
• USB/Ethernet cables and power adapter.
• Ruggedized transport case.

Also Known As

Go-Scan HR 1510, High-Resolution CMOS Detector, Teledyne ICM 1510 HR, Flat Panel X-ray Sensor
