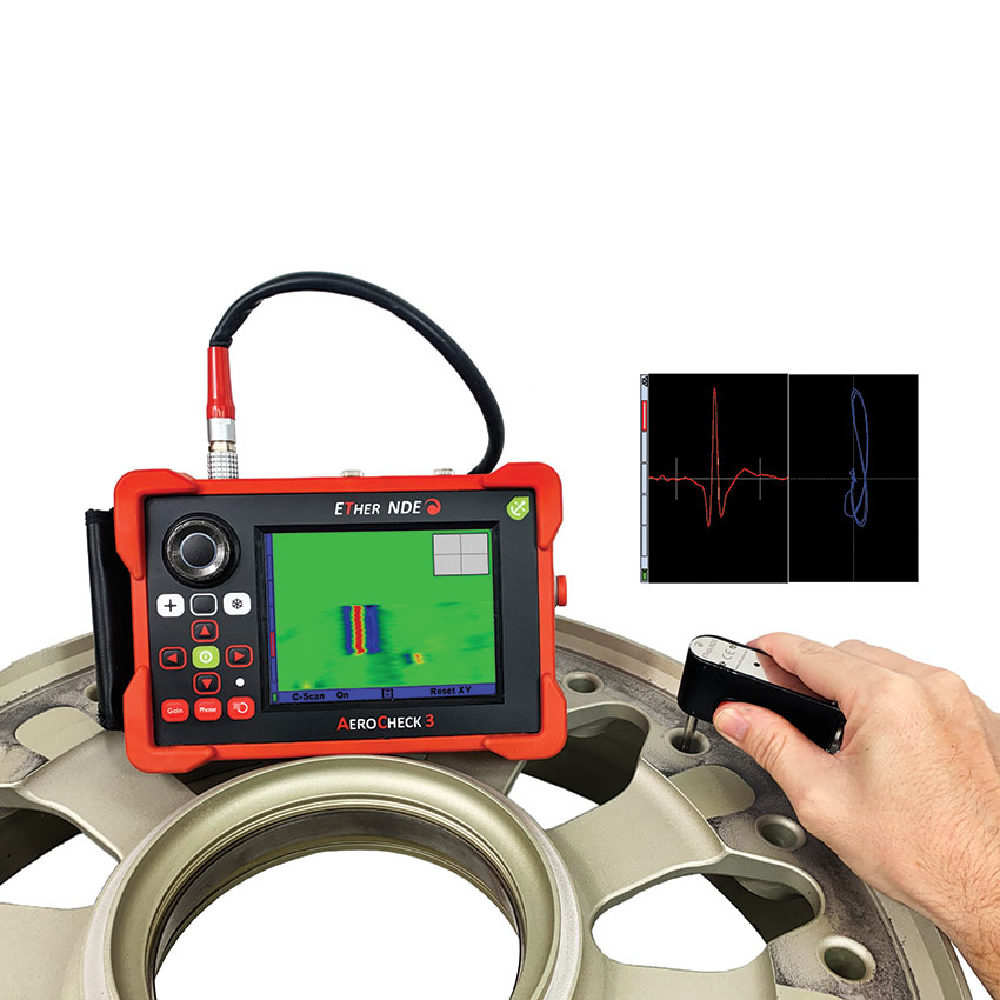

Available with or without the thumbwheel option the AeroCheck 3 Dual Frequency Flaw Detector delivers the best in Eddy Current performance, with rotary inspection C-Scan capabilities as standard, together with variety of advanced features.
The AeroCheck 3 offers improved mechanical and ergonomic design together with variety of advanced features.
Based on operator feedback and embracing the use of new materials, the AeroCheck 3 embodies enhanced ruggedness, a toughened screen, improved connector access and performance, combined with optional features such as an encoder wheel.
The dual frequency AeroCheck 3 has a frequency range of 10Hz to 20MHz, ensuring a diverse range of real world applications can be met. Supplier: Ether NDE Ltd.
Available with or without the thumbwheel option the AeroCheck 3 Dual Frequency Flaw Detector delivers the best in Eddy Current performance, with rotary inspection C-Scan capabilities as standard, together with variety of advanced features.
The AeroCheck 3 offers improved mechanical and ergonomic design together with variety of advanced features.
Based on operator feedback and embracing the use of new materials, the AeroCheck 3 embodies enhanced ruggedness, a toughened screen, improved connector access and performance, combined with optional features such as an encoder wheel.
The dual frequency AeroCheck 3 has a frequency range of 10Hz to 20MHz, ensuring a diverse range of real world applications can be met.
LIGHTWEIGHT, RUGGED, “SURE GRIP” & ENHANCED PROTECTION
The AeroCheck 3 weighs just 1.15kg (2.54lbs) and has a blended polymer case, withstanding of high levels of impact, oil and UV resistance.
Over-moulded rubber gives the end-user improved handling and enhanced grip, with or without gloves. Ergonomic features are embraced within the case design and at the rear moulded “bars” offer a more comfortable grip of the unit during long periods of use. A wide, detachable hand strap, is also available for easy carrying.

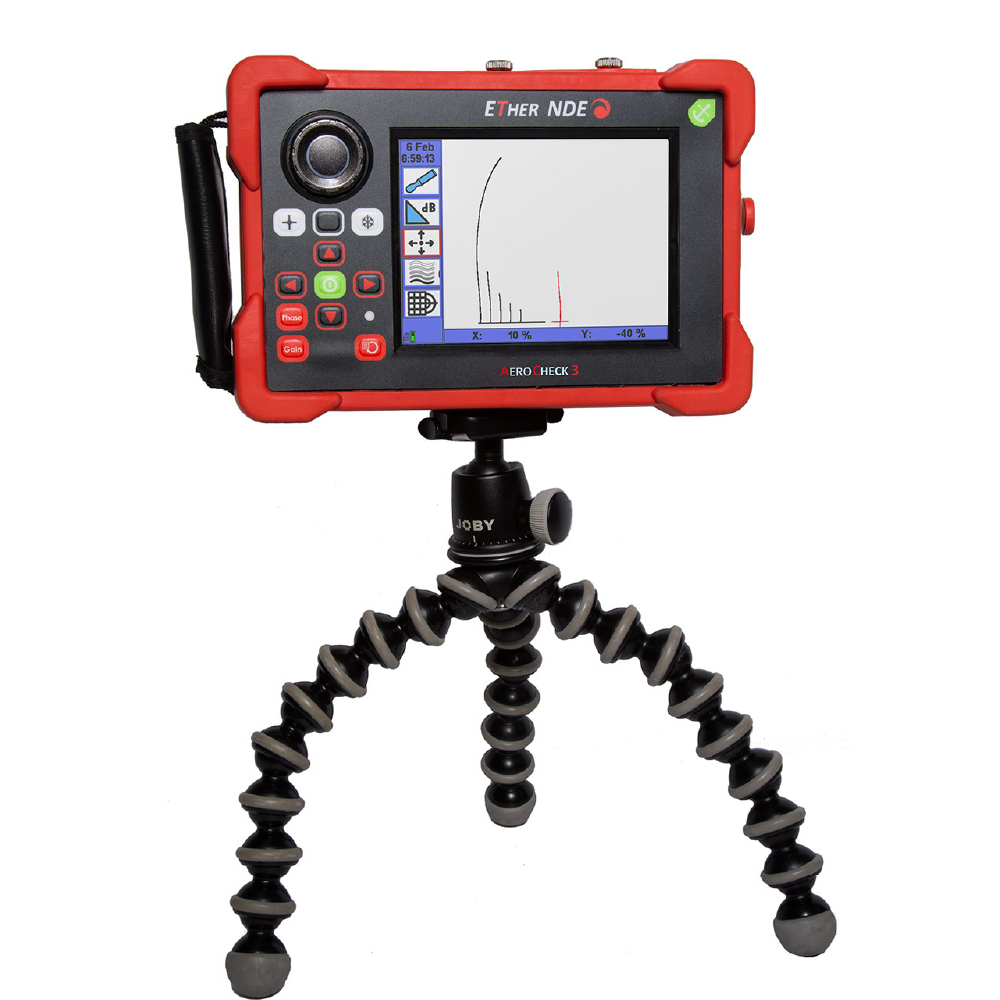

The AeroCheck 3 Series now offers the option of two models, one with the standard keypad for instrument navigation and the other with a thumbwheel configuration for fast single-handed software navigation, phase and gain adjustment during inspection.
The AeroCheck Series can be used with all reflection, bridge and absolute probes from all manufacturers and uses industry standard 12-Way Lemo and Co-axial Lemo 00 connectors, reducing the need to use adapters.
Designed and manufactured in the UK, our instruments are backed by the ETher NDE promise of outstanding customer service and technology that is both reliable and advanced.
| Probe | |
| Connectors | 12-Way Lemo 2B (IP68) (Absolute, Bridge and Reflection) and Connection Lemo 00 (IP68) (for single element absolute probes). Simultaneous probe operation possible using Lemo 12-Way and Lemo 00. |
| Rotary Drive | 600-3000 rpm – ETher Mercury Drive (ADR002), Hocking 33A100, Rohmann MR3, SR1 & SR2 Drive (special adpater needed) |
| Conductivity | Option becomes active with use of an AeroCheck Conductivity probe and cable (see end of spec table) |
| Frequency | |
| Single/Dual | Single 10Hz – 20MHz with range variable resolution. Dual 10Hz – 20MHz |
| Gain | |
| Overall | -18 to + 104 dB, 0.1, 1 and 6dB steps (104dB maximum) + Mix Gain (-18 to +18dB on Output) |
| Input | 0dB or 12dB |
| Drive | – 6dB to 10dB in 1dB steps (0dB reference 1mW into 50 ohm) |
| Max X/Y Ratio | +/-100.0dB |
| Phase | |
| Range | 0.0-359.9°, 0.1° steps |
| Auto Phase | Allows phase angle to be automatically set to a pre-set angle |
| Filters | |
| Normal High Pass | DC to 2kHz or Low Pass Filter, which ever is the lower in 1 Hz steps. Plus variable adaptive balance drift compensation 0.01 – 0.5 Hz (6 steps) |
| Normal Low Pass | 1Hz to 2kHz or a quarter of the lowest test frequency, which ever is lower in 1 Hz steps |
| Balance | |
| Manual | 14 internal balance loads; 2.2µH, 5.0µH, 6.0µH, 6.5µH, 7.0µH, 7.5µH, 8.2µH, 12µH, 15µH, 18µH, 22µH, 30µH, 47µH, 82µH |
| Automatic | Optimised balance load selection |
| Alarms | |
| Box & Sector | Both Alarm types are fully configurable, Freeze, Tone or Visual |
| Output | Open collector transistor (50v dc at 10mA max) available on 12-way Lemo |
| Display | |
| Type | 145mm (5.7”), 18 bit Colour, daylight readable |
| Viewable Area | 115.2mm (4.53”) (Horizontal) x 86.4mm (3.4”) (Vertical) |
| Resolution | 640 x 480 pixels |
| Colour Schemes | User configurable Dark, Bright and Black & White |
| Configurable Screen | Full Screen, Single, Dual Spot or Dual Pane with variable size and location and function e.g. XY, Time-base, Waterfall and Meter. |
| Display Modes | Full Screen, Single, Dual Spot or Dual Pane with variable size and location and function e.g. XY, Time-base, Waterfall and Meter. Spot, Time base (0.1-20 seconds x 1-200 sweeps and up to 55 seconds), Waterfall and Meter with peak hold and % readout |
| Graticules | None, Grid (4 sizes 5, 10, 15 and 20% FSH), Polar (4 sizes 5, 10, 15 and 20% FSH) |
| Offset | Spot Position: Y =-50 to +50, X =-65 to +65% |
| Digital Spot Display | in X, Y or R,θ |
| Setting | Display/Edit of all settings in Legacy Format |
| Removable Storage Data | |
| Setup Storage | micro SD up to 32GB, holding over 10,000 settings |
| Stored Screen Shots | micro SD up to 32GB, holding over 10,000 screen shots |
| Shots | Comprehensive Record, Replay and Storage |
| Outputs | |
| Record Replay | Real-time recording of trace data and Replay on instruments and desktop PC up to 164 seconds |
| PC Connectivity | USB (Full PC remote control plus Real Time data) |
| Digital Volt Free Alarm | On Lemo 12-way Open collector transistor (36v dc at 10mA max) |
| VGA | Full 15 way VGA output |
| Languages | |
| English, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Turkish, Czech, Norwegian. | |
| Verification Level | |
| The system includes on delivery a 2 year validity Verification Level 2 detailed functional Check and calibration, as per ISO 15548-1:2013. | |
| Power On Self Test | |
| A “self test” on start-up is performed of external ram, accelerometer, Micro SD card, LCD screen buffer. | |
| Power | |
| Battery | Internal 7.2V nominal @ 3100mAh = 22.32 watt.hr |
| Running Time | Over 7 hours with a Weld Probe at 100kHz and 50% backlight |
| Charging Time | 2.5 hrs. charge time, simultaneous charge and operation |
| External | 100-240v 50-60Hz 30 Watts |
| Connector | Lemo OS Hermaphroditic keying, half-moon insert (IP68) |
| Physical | |
| Weight | 1.15 kg (2.54 lbs) |
| Size (w x h x d) | 222.2mm x 152.2mm x 47.4mm (LxHxW) (8.75” x 6.0” x 1.87”) |
| Material | Main Body: PC-ABS a blend of the two polymers – Polycarbonate (PC) and Acrylonitrile Butadiene Styrene (ABS). Over-moulded Material: TPE Red Rubber, Thermoplastic Elastomer (TPE). |
| Operating Temp. | -20 to +60°C (-4 to 140 °F) |
| Storage Temp. | Storage for up to 12 months -20 to +35°C (-4 to 95°F) Nominal +20°C (68°F) |
| IP Rating | Designed to meet requirements of IP64 |
| Advanced Features | |
| Guides | Create and display a slide show containing instructions, tutorials and procedures using Microsoft PowerPoint. |
| Attachments | Screenshots and Data Recordings are saved in a folder with the name of the Settings. |
| Loop | Capture a live repetitive signal and then optimise instrument settings (Phase, Gain, Filters) to simplify optimising the parameters |
| Trace | Allows a calibration reference signal to be stored on the screen, which can then be compared with a live signal. |
| Data Output | Real-time, post processed over USB at 8kHz overall for all 3 data pairs (X, Y and Mix) with DLL for embedding functionality into software. |
| Conductivity Features | |
| Frequency/Resolution | 60kHz – 3 decimal points max Auto Resolution Mode AutoS = legacy instrument, Auto = SigmaCheck |
| Accuracy | 0.5%-10% IACS better than +/-0.05% IACS; 10%-25% IACS better than +/-0.25% IACS; 25%-60% IACS better than +/-0.5% IACS; 60%-110% IACS better than +/-1% IACS; Lift Off corrected to 1.0mm; No temperature compensation; All Errors at 90% Confidence Level |
| Resolution | 3 decimal points max |
| Auto Resolution Mode | AutoS = Legacy Instrument, Auto = SigmaCheck |
| Optional | |
| Thumbwheel | Number of Detent 12 Material Polyamide, polycarbonate. |
AeroCheck 3 Kit (Keypad Option): KIAER300
| Part # | Item |
|---|---|
| IAER300 | Instrument, AeroCheck 3, Software & Manual on USB Stick. |
| AWEL009 | Accessory, AeroCheck 3 – Lemo Type, Power Adapter & input plugs (UK, EU,US & AUS) |
| AWEL003 | Accessory, Adjustable padded shoulder strap, quick-release clips |
| AC006 | Accessory, instrument soft carry case |
| A090 | USB Cable – A to MINI B, 1m |
| 41292 | Quick Reference Card (A5 double sided) – AeroCheck 3 |
| ALLCX-M02-015A | Accessory, Lead, Lemo 00 to Microdot, 1.5m (Absolute) |
| ALL12-L04-015R | Accessory, Lead, Lemo 12-Way – Lemo 4-Way, 1.5m (Refelction) |
| A439 | Split Rings-ID 25.00, Thickness 3mm, (SKU:NPS25) |
—
AeroCheck 3 Kit (Thumbwheel Option): KIAER300TW
| Part # | Item |
|---|---|
| IAER300TW | Instrument, AeroCheck 3, thumbwheel, Software & Manual on USB Stick. |
| AWEL009 | Accessory, AeroCheck 3 – Lemo Type, Power Adapter & input plugs (UK, EU,US & AUS) |
| AWEL003 | Accessory, Adjustable padded shoulder strap, quick-release clips |
| AC006 | Accessory, instrument soft carry case |
| A090 | USB Cable – A to MINI B, 1m |
| 41292 | Quick Reference Card (A5 double sided) – AeroCheck 3 |
| ALLCX-M02-015A | Accessory, Lead, Lemo 00 to Microdot, 1.5m (Absolute) |
| ALL12-L04-015R | Accessory, Lead, Lemo 12-Way – Lemo 4-Way, 1.5m (Reflection) |
| A439 | Split Rings-ID 25.00, Thickness 3mm, (SKU:NPS25) |
—
| Part # | Item |
|---|---|
| AWEL010 | Protective Splash Case (keypad only version) |
| AWEL011 | Protective Splash Case (thumbwheel version) |
| ALLCX-M02-015A | Accessory, Lead, Lemo 00 to Microdot, 1.5m |
| ALL12-B02-015A | Accessory Lead, 12-way Lemo – BNC Plug, 1.5m cable, (Absolute) |
| ALL12-L04-015B | Accessory Lead, 12-way Lemo to 4-Way Lemo, 1.5m cable, (Bridge) |
| ALL12-L04-015R | Accessory Lead, 12-way Lemo to 4-Way Lemo, 1.5m cable, (Reflection) |
| ALL12-M02-M02-015AR | Accessory Lead, 12-Way Lemo to x2 Micro Plug, 1.5, (RX TX) (Reflection) |
| ALL12-L12-020M | Accessory Lead, 12-Way Lemo – 12-Way Lemo, 2.0m (Rotating Drive) |
| AWEL012 | Accessory, PELI STORM iM2300 Case with custom foam inserts |
| AALCX-B02S | Accessory, Adapter Lemo 00 Coaxial to BNC socket |
| A418 | Hand Strap, AeroCheck 3 |
**Errors and omissions excepted (E&OE)
