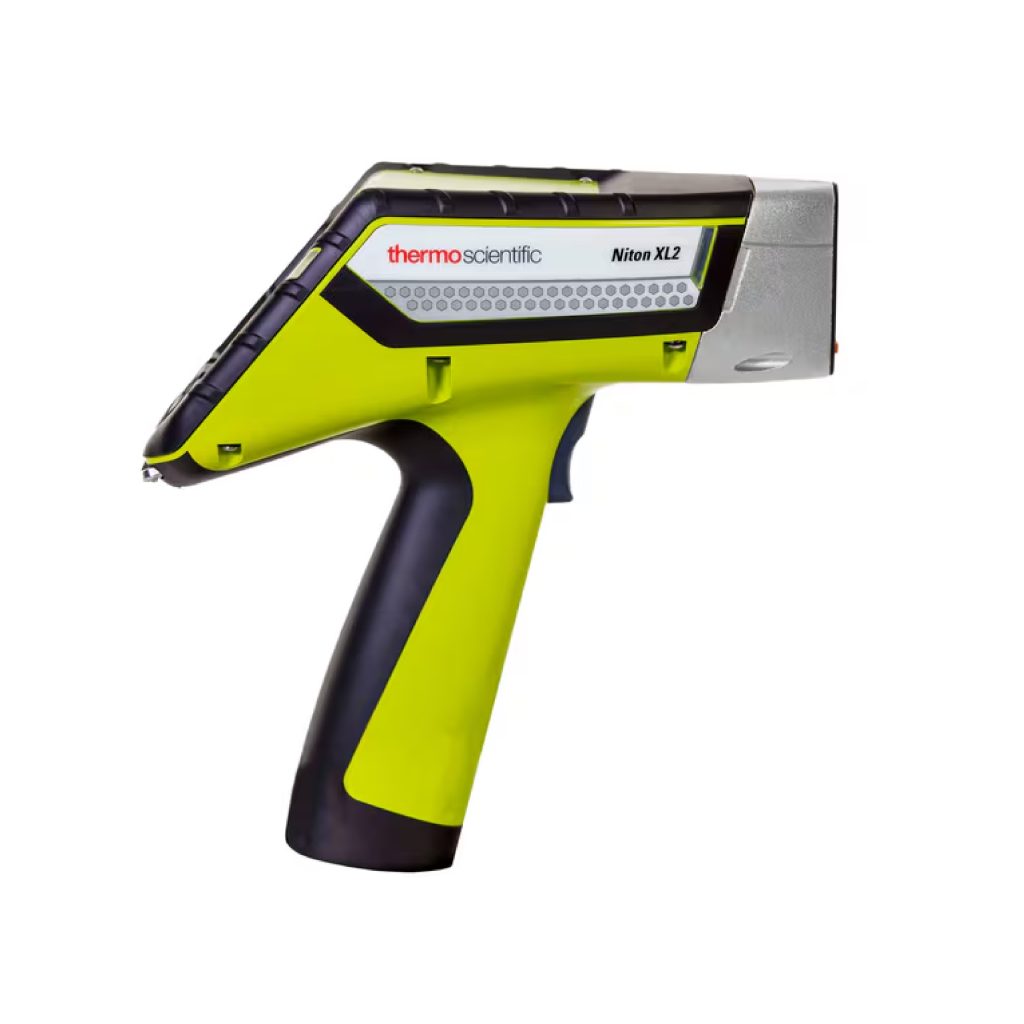

Niton XL2 Plus Handheld XRF Analyzer from the main view on a white background
Rear view of the Niton XL2 Plus Handheld XRF Analyzer, on a white background
Side view of the Niton XL2 Plus Handheld XRF Analyzer in a technicians hand, on a white background

Niton XL2 Plus Handheld XRF Metal Analyzer

Get rapid, precise elemental analysis for metal and alloy identification, PMI testing, and more with the Niton™ XL2 Plus Handheld XRF Analyzer. Supplier: Spectrometer

  • Stock Code: xxxx-2
Description

Detailed Overview

Rely on the Thermo Scientific™ Niton™ XL2 Plus handheld XRF analyzer when accuracy, efficiency, and durability are essential. Built for industrial performance, it delivers quick analysis with low detection limits—making it ideal for identifying pure metals, alloys, and gathering geochemical data. Designed to handle demanding environments, the Niton XL2 Plus empowers operators to scan a wide variety of materials using one versatile, rugged instrument. It’s the trusted partner for businesses that need clarity, confidence, and consistency in every scan.



Features

  • 2W X-Ray Tube
  • Silicon Drift Detector (SDD) for light element detection (Mg, Al, Si, P, S)
  • Detector ProGuard Protection
  • Micro Camera
  • Hot Swap Battery
  • Touch Screen and Directional Keys
  • Password Protected Security
  • IP54 Certified (Splash/ Dust Proof)
  • Nose Cone Alignment Guides

Applications

  • Verification of metals and alloys in manufacturing
  • Quality Assurance testing for positive material identification
  • Point-and-shoot sorting at scrap recycling operations
  • Coating thickness measurements from single element layers
  • Precious metal assay of bullion and jewelry
  • Geochemical analysis for ore trading and grade control
  • On-site heavy metal screening of polluted soils
  • Lead in paint inspection of industrial facilities
  • Screening of hazardous substances in consumer goods



Technical Specifications

Feature Specification
Analytical Range Mg-U
Available Analytical Modes General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products
Bluetooth Supports print functionality, external GPS connectivity and barcode reader
Camera Integrated CCD micro camera for locating and recording measurement positions
Certifications/Compliance CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1, IP54 (splash and dust proof)
Data Entry Touchscreen keyboard
User customizable data entry
Optional wireless remote barcode reader
Data Storage 64 MB internal system memory / 128 MB internal user storage
Stores approximately 10,000 readings with spectra (fewer if images are saved)
Data Transfer USB, Bluetooth, RS-232 serial communication
Description Niton XL2 Plus Handheld XRF Analyzer
Dimensions (L x W x H) 10 x 10.8 x 3.9 in (25.6 x 27.5 x 10 cm)
Display Type Fixed angle, color, resistive touchscreen display
Global Positioning System Optional external GPS (via Bluetooth)
Languages English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech
Libraries Default alloy libraries based on SAE, AISI, ASTM, AA standards
Users may create and edit libraries
Licensing Varies by region. Contact your local distributor.
Operating Environment Temperature: -10°C to 50°C
Humidity: 0% to 80% relative humidity non-condensing
Operating System Proprietary
Optional Accessories Thermo Scientific™ portable test stand
Thermo Scientific™ mobile test stand
Thermo Scientific™ field mate test stand
Thermo Scientific™ soil guard
Power Consumption 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply
Hot swap functionality keeps analyzer powered during battery replacements
Security Features Password-protected user security
Software Support Software: Niton Data Transfer (NDT) PC software
Spot Size 8 mm collimation
Standard Accessories Locking shielded carrying case
Two (2) lithium-ion battery packs
One (1) 110/220 VAC battery charger/ AC adaptor
Check samples
Belt holster
Safety lanyard
PC connection cables (USB and RS-232)
System Details Built-in standardization via automatic system check
Weight (English) 3.4 lbs with battery
Weight (Metric) 1.53 kg with battery
X-Ray Source Type X-Ray Tube: Ag anode (6-45kV, 1-200uA, 2W max)
Dynamically adjustable current for optimal sensitivity on every analysis
Applications Identify pure metals and alloys, detect tramp elements, or obtain geochemical data
Detector Type Silicon Drift Detector (SDD)
Detector ProGuard protection included
Tube Voltage 6 to 45 kV
Unit Size Each

**Errors and omissions excepted (E&OE)
