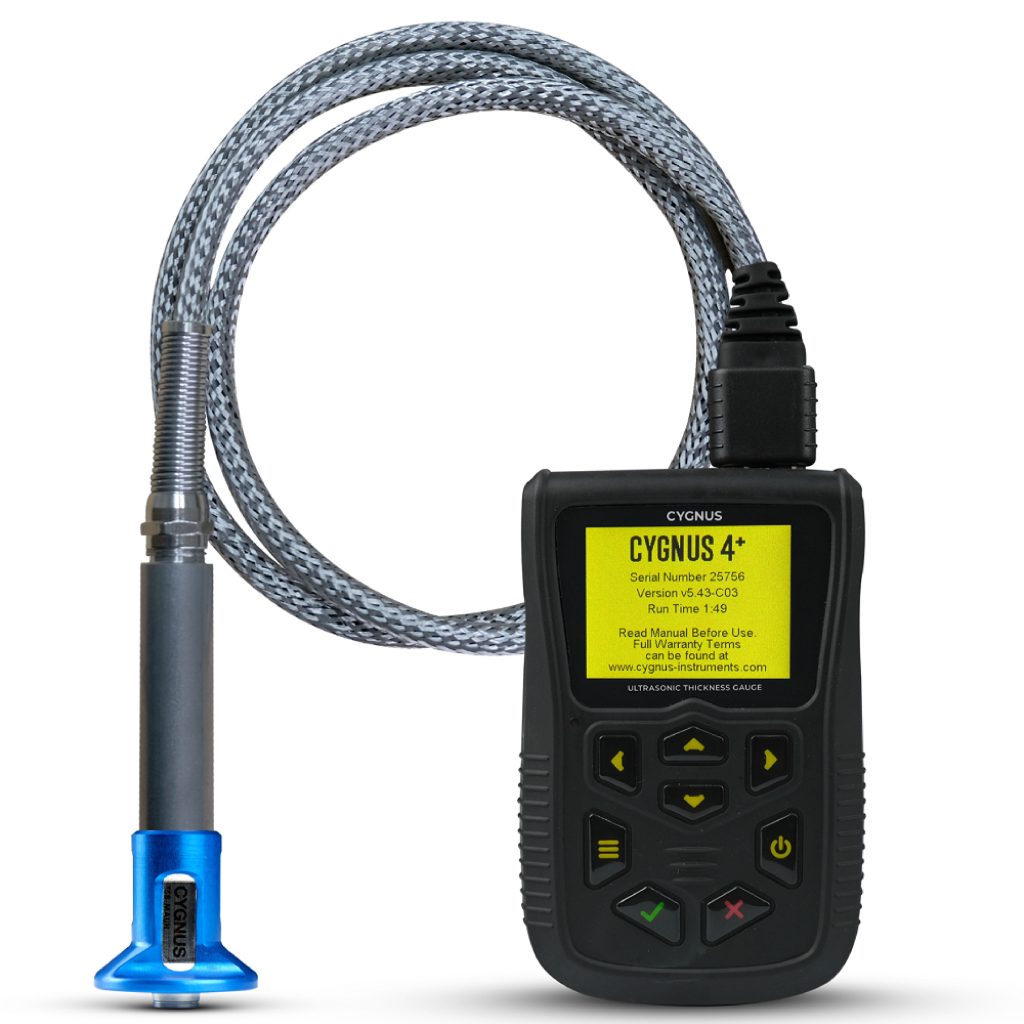

Secure advanced UT capabilities, data logging, and easy reporting in a versatile field unit. The Cygnus 4+ is a versatile Ultrasonic Thickness Gauge offering Multiple-Echo, Single-Echo, and Echo-Echo modes for maximum application flexibility. It features comprehensive data logging, a large LCD display, and flexible reporting options, providing an all-in-one solution for accurate corrosion and pitting analysis on both coated and uncoated materials. Supplier: Cygnus Instruments Ltd.
The Cygnus 4+ General Purpose thickness gauge is a robust, lightweight, multi-mode thickness gauge A robust, lightweight, multi-mode thickness gauge is the Cygnus 4+ General Purpose thickness gauge. It has an easy-to-use menu, sequential data logging for reporting and analysis, and a sunlight-readable display with Live A-scan. The unit can measure the residual wall thickness of high-temperature, operational assets without shutting down or isolating them when used in conjunction with the Cygnus High Temperature Probe. It is perfect for high-temperature, in-service thickness surveys in the refining, oil and gas, energy and process industries as well as plant maintenance, civil engineering, ship inspections and oil and gas facilities.
An advanced ultrasonic gauge for non-destructive thickness measurement with enhanced data features and measurement modes. Its function is to provide verifiable thickness measurements for integrity assessment, even on coated and corroded surfaces.
| Measuring Modes | Multiple-Echo (ignores coatings up to 20 mm), Echo-Echo, Single-Echo |
| Measurement Range (Steel) | 1.5 mm to 250 mm (depending on probe/temp/mode) |
| Display | 2.4” QVGA LCD, sunlight readable, Live A-scan (waveform verification) |
| High Temperature Capability | Up to 300 degree C with appropriate probe and high-temperature couplant |
| Data Logging | Basic linear logging, saves measurements and A-scans on SD card (Supports grid logging) |
| Accuracy (Multiple-Echo) | plus or minus 0.05 mm (plus or minus 0.002”) |
| IP Rating | IP67 (Dust and water immersion proof), MIL STD 810G rated (Shock and Vibration) |
| Hazard Rating | Safe operation in Explosive Atmospheres: Class I, Division 2, Group D Locations (intrinsically safe compliant) |
| Weight | 300 grams (10.58 oz) inc. batteries |
| Velocity Range | Adjustable from 1000 to 9000 m/s |
Corrosion Meter, Multiple Echo Tester, Through-Coating Gauge, A-Scan UT Gauge, Hazardous Area Thickness Meter
**Errors and omissions excepted (E&OE)
