Description

Detailed Overview

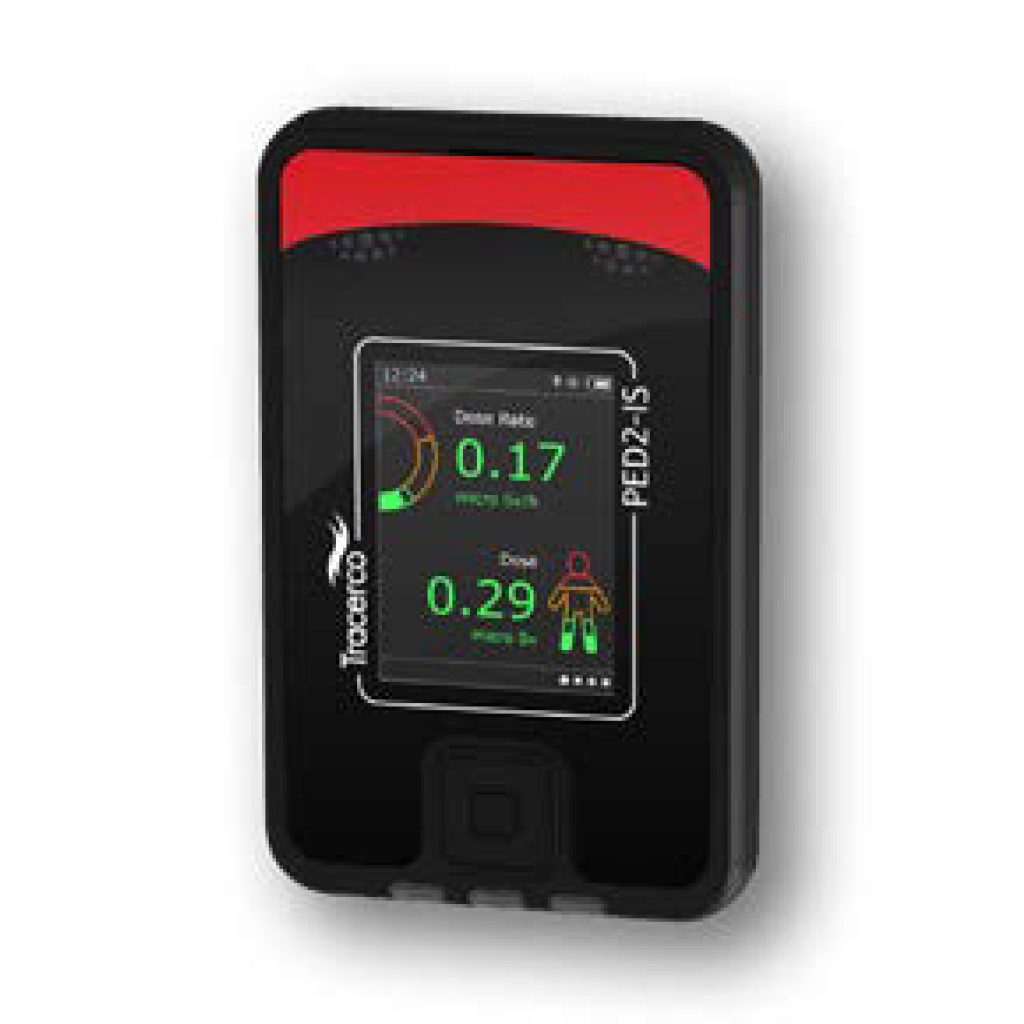

Built on more than ten years of real-world user experience, the Tracerco™ Personal Electronic Dosimeter Gen 2 (PED2) stands as a grab-and-go guardian for radiation safety. Engineered for X-ray and gamma ray monitoring, it measures, records, and displays both dose rate and accumulated dose in real time. Equipped with up to four configurable alarm thresholds, the PED2 delivers audible, visual, textual, and haptic alerts, ensuring nothing goes unnoticed.

Its single-button navigation and intuitive carousel-style menu make operation effortless, while the large, high-visibility color display provides crisp, immediate situational clarity. Exposure data is automatically captured and stored in a self-managing memory system, ready to be securely transferred into the Tracerco™ DoseVision™ software.

Within DoseVision™, data becomes easy to visualize, configure, and report — with optional cloud-based services offering secure, auditable, and efficient management of both equipment and worker dose records. Rugged and intelligent, PED2 is designed to protect without complicating.

Highest safety certified electronic dosimeter for constant radiation monitoring in explosive atmospheres.

  • This device is certified as intrinsically safe, allowing personnel to safely monitor their personal radiation dose in hazardous environments (Zone 0/1) where flammable gases or dust are present.
  • It provides immediate warnings and logs dose data for regulatory compliance.
  • The product is the PED2-IS electronic dosimeter, a charging base, and a data transfer connection.

Benefits

  • Clear and readable transflective display enables use in dimly lit or sun-glare scenarios
  • Responds promptly to small changes in radiation whilst also being capable of making accurate and reliable readings in hot zone fields up to 1Sv/h
  • Powered by commercially available rechargeable or replaceable batteries
  • Secure NFC data download via charging dock also with USB C connection
  • PED2+ and PED2-IS+ are BLE and GPS enabled, have enhanced alarm messaging, and can operate in off-body mode for handheld surveys and perimeter monitoring tasks
  • Intrinsically safe variants (PED2-IS and PED2-IS+) cater for use in hazardous areas
  • DoseVision™ companion software with optional cloud ecosystem

Applications

  • Emergency responders and security services
  • Offshore and onshore oil and gas
  • Industrial radiography
  • Border control and military (CBRNe)
  • Nuclear and decommissioning
  • Medical and life sciences
  • Mining

Technical Specifications

Performance
Radiation Detected Gamma and X-rays detected
Photon Energy Response 33keV to 3MeV (non-I.S. variants) / 48keV to 3MeV (I.S. variants)
Accumulated Dose Range** 0µSv – 42Sv (0mrem – 4200 rem)
Dose Increments 0.01µSv (0.001mrem)
Detector Geiger Muller tube (with RapidResponse technology for increased range and high sensitivity)
Dose Rate Range (Standard)** 0µSv – 100mSv/h (0mrem/h-10rem/h)
Extended Calibration Range 0µSv – 1Sv/h (0mrem/h – 100rem/h). Detection limit 0.12µSv/h.
Units Sieverts or Rem (selected in DoseVision™ software)
Memory (Capacity) 250MB self-managing (i.e. > 1 million records)
Memory (Duration) Personal dose: >10 years (including GPS data) / Survey mode: > 1 year continuous logging
Screen Type 2” TFT Transflective, 65k full colour 240*320 pixels (screen rotate)
Configurable Alarms Audible, visual, haptic. Up to 4 dose alarms and 4 dose rate alarms
Non-Volatile Memory Retention NVM data retention > 10 years
Electrical Characteristics
Battery Options*** 2 x AAA 1.2V NiMH rechargeable cells or 2 x AAA 1.5V Alkaline disposable cells
Charging/Data Download USB C cable (PED2/PED2+) or supplied charging dock (PED2-IS/PED2-IS+)
Real Time Clock (RTC) Secondary cell RTC battery back-up and primary cell removal detection
Physical Sensors Accelerometer, Temperature
Comms/Location (PED2-IS) NFC
Comms/Location (PED2+ / PED2-IS+) NFC, BLE 5, GPS
Mechanical Characteristics
Size 102mm x 63mm x 31mm
Weight < 200g
Case Material Shock, vibration and drop resistant polymers with antistatic properties. Front replaceable protective membrane (anti-tamper).
Environmental
Ingress Protection Rating IP67 (dust tight and immersion in water at depth of 1m)
Humidity Range Up to 95%
Operating Temperature Range -20°C to 50°C

Hazardous Area Classification Code (PED2-IS, PED2-IS+ only):
ATEX and IECEx: Zone 0, 1, 2 gas group IIA, IIB, IIC
Hazardous Area Certification Codes (PED2-IS, PED2-IS+ only):

ATEX Marking: II 1G Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +50°C)IECEx Marking: Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +50°C)UKEx Marking: Ex ia IIC T4 Ga (-20°C ≤ Ta ≤ +50°C)
Standard Compliance:
BS EN 61526 – 2013; IEC 61526:2010; ANSI42.20:2003; EN55011; IEC60079-0; IEC60079-11; IEC61010-1

* For detailed response curve please see report by Radiation Metrology, UKHSA.
** Accumulated dose indicated relates to personal dose equivalent Hp(10). Corresponding dose rate indicated relates to personal dose equivalent rate except where plus variants are used in Survey mode where the rate indication is related to the ambient dose equivalent H*(10).
*** Specified batteries must be used for IS variants. See user manual for permitted battery types.

FAQ: PED2-IS – Intrinsically Safe Personal Dosimeter

What is a Personal Dosimeter used for?

It is a device worn by personnel that measures and records the cumulative radiation dose received over a period, ensuring compliance with occupational radiation safety limits.

What does “Intrinsically Safe (IS)” mean?

IS certification means the device is designed to not ignite a flammable atmosphere (gas, vapor, dust) under normal or fault conditions, making it safe for use in hazardous areas (e.g., refineries).

**Errors and omissions excepted (E&OE)
