Detailed Overview

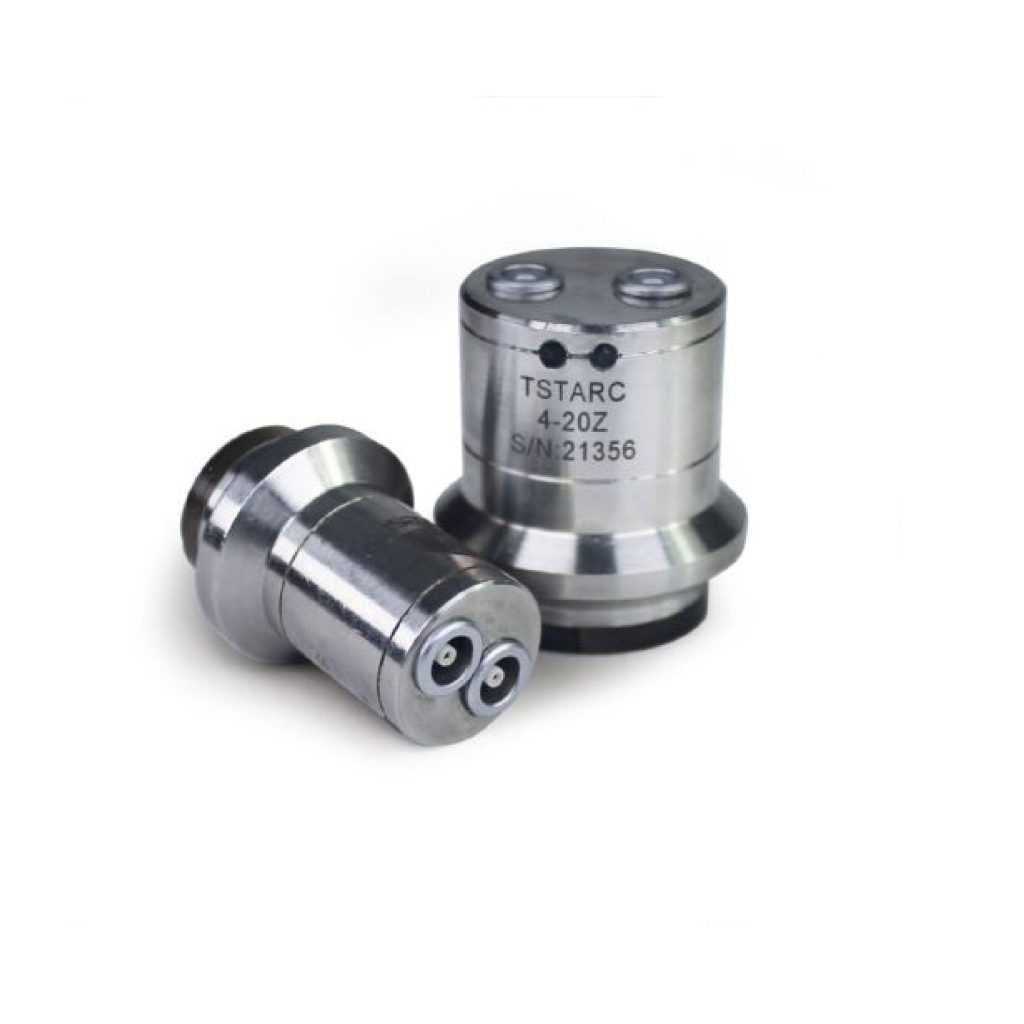

A 4 MHz Twin Crystal (TC) UT probe with a specialized design (TSTARC) for enhanced near-surface performance. It is used for high-resolution thickness gauging and corrosion/pitting detection on metallic surfaces. The probe is a high-detail, sharp-focus solution for precision near-surface NDT.

A highly specialized, high-resolution twin-crystal angle probe for detecting flaws near surfaces and corners.

• This probe combines the high resolution of 4MHz with a twin-crystal design and an angled beam, making it ideal for detecting flaws in fillet welds, nozzle radii, and other complex geometries where near-surface sensitivity is paramount.
• The design minimizes interference from the probe contact zone.
• The product is a specialized twin-crystal shear wave ultrasonic angle beam probe, often contoured.

Top Features & Benefits

• 4 MHz Twin Crystal (Dual Element)
• TSTARC
• Used for corrosion/erosion

Primary Uses & Functions

A 4MHz twin crystal (dual element) probe used for corrosion mapping and thickness gauging, offering improved near-surface resolution.

Real-World Applications

• Used for Ultrasonic Testing (UT) as a medium-high frequency twin crystal probe
• Detection of near-surface defects and pitting corrosion with high resolution
• Thickness measurement on corroded surfaces

Industry Solutions

• Oil & Gas
• Petrochemical
• Railway
• Automotive
• Mining
• Power Generation
• Wind & Solar
• Manufacturing

Technical Specifications

Compatibility

• Designed for use with Sonatest ultrasonic flaw detectors (Masterscan/Sitescan series) or other compatible units.
• Optimized for high resolution measurement and flaw detection in thinner materials or those with complex geometry.

What’s In The Box?

• TSTARC 4MHz Twin Crystal UT Probe.
• Connecting cable (often Lemo-00 to Lemo-1).

Also Known As

Outside Diameter Shoe, Axial Array Wedge
