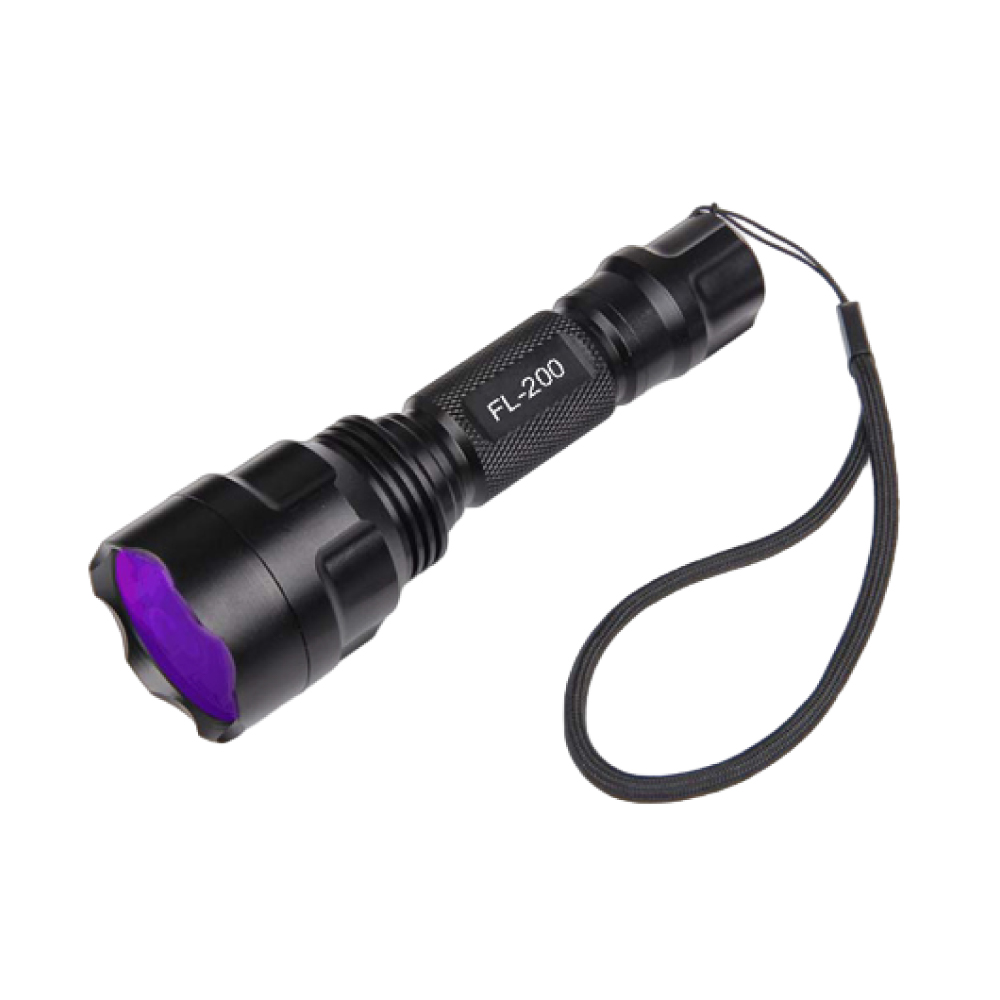

Engineered for high-precision non-destructive testing (NDT), the FL-200 Portable UV-A LED Flashlight delivers a powerful 3,000 µW/cm² intensity at 15 inches. Powered by premium 365nm Nichia UV LEDs, this pocket-sized (0.6 lbs), IP65-rated inspection lamp meets strict ASTM compliance standards for Fluorescent Penetrant Inspection (FPI) and Magnetic Particle Inspection (MPI). Featuring a 5.1-inch coverage area, low visible light emission (< 2 foot-candles), and dual rechargeable Li-ion batteries for up to 10 hours of continuous runtime, it is the ideal tool for demanding field and lab environments.
Specification:
PowerfuNichia UV LEDs applied (365nm, pure UV-A)
UV Intensity at 15 inches (38 cm)
FL-200: 3,000 uW/cm²
Diameter UV coverage area at 15 inches (38 cm)
FL-200: 5.1″(13cm)
Low visible light emission – less than 2 foot-candles (22 lux)
Supplied with a Certificate of Conformance for both wavelengths and output measurements. They meet ASTM UV-A intensity and LED wavelength specifications for FPI and MPI.
Protection IP65, Black anodized aluminum body
UV-LED Risk Class acc. to DGZfP EM6 and BGFE：2
Power Supply: 115-240 VAC / 50-60 Hz (Universa)
Weight: 0.6 pounds (0.3Kg)
Dimensions: 8.2″ x Dia. 1.7″(210 x Dia.45 mm)
Standard package includes:
UV absorbing spectacles: 1
flashlight cover: 1
#18650 Li rechargeable battery: 2
110-220 VAC charger: 1
Robust carrying case: 1
OptionaSpare parts:
PURE-365 Wood glass UV Filter
**Errors and omissions excepted (E&OE)
