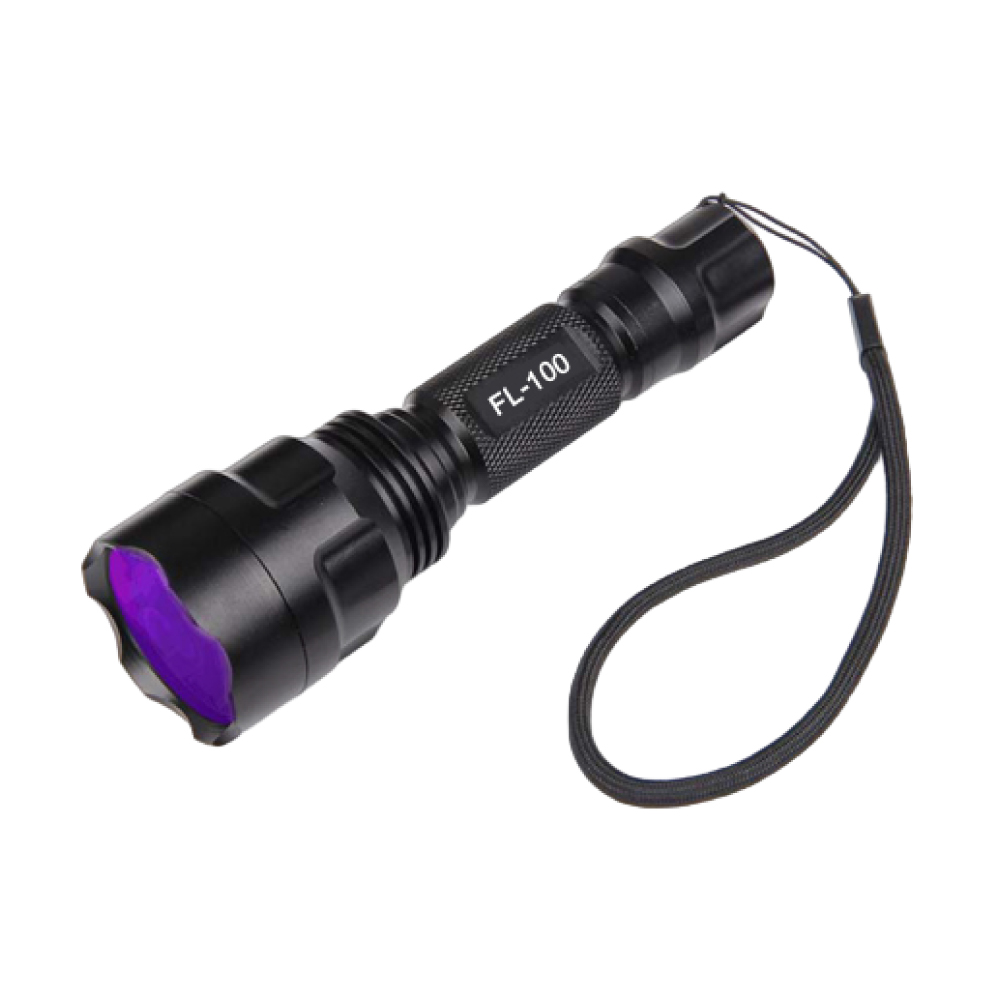

The FL-100 Ultraviolet LED Torch is a pocket-sized, high-intensity UV-A black light designed for fluorescent penetrant inspection (FPI) and magnetic particle inspection (MPI). Equipped with Nichia UV LEDs, it emits a pure 365 nm UV-A spectrum with minimal visible light emissions (under 2 foot-candles / 22 lux). Encased in a black anodized aluminum body with an IP65 protection rating, it offers heavy-duty durability without generating excessive heat during continuous operation.
| Feature | Specification |
| UV Wavelength |
Pure 365 nm UV-A |
| UV Intensity at 15″ (38 cm) |
30,000 µW/cm² |
| UV Coverage Diameter at 15″ |
2.6 inches (6.5 cm) |
| LED Lifetime |
> 30,000 hours |
| Visible Light Emission |
< 2 foot-candles (22 lux) |
| Weight |
0.6 lbs (0.25 kg) |
| Dimensions |
8.2” L × 1.7” Dia (210 × 45 mm) |
| Ingress Protection |
IP65 rated |
| Battery Life |
10 hours continuous operation (2 x #18650 Li batteries) |
| Standards Compliance |
Meets ASTM UV-A intensity & LED wavelength specs; includes Certificate of Conformance |
Key Benefits
Instant Performance: Operates with zero warm-up time and runs completely cool to prevent heat hazard risks.
Ultra-Portable: Weighs just 0.6 lbs, serving as a lightweight alternative to traditional 11–18 lb mercury vapor units.
Complete Kit: Ships in a robust carrying case complete with UV-absorbing spectacles, a flashlight cover, two rechargeable 18650 Li batteries, and a universal 110–220 VAC charger. (Optional PURE-365 Wood glass UV Filter available).
**Errors and omissions excepted (E&OE)
