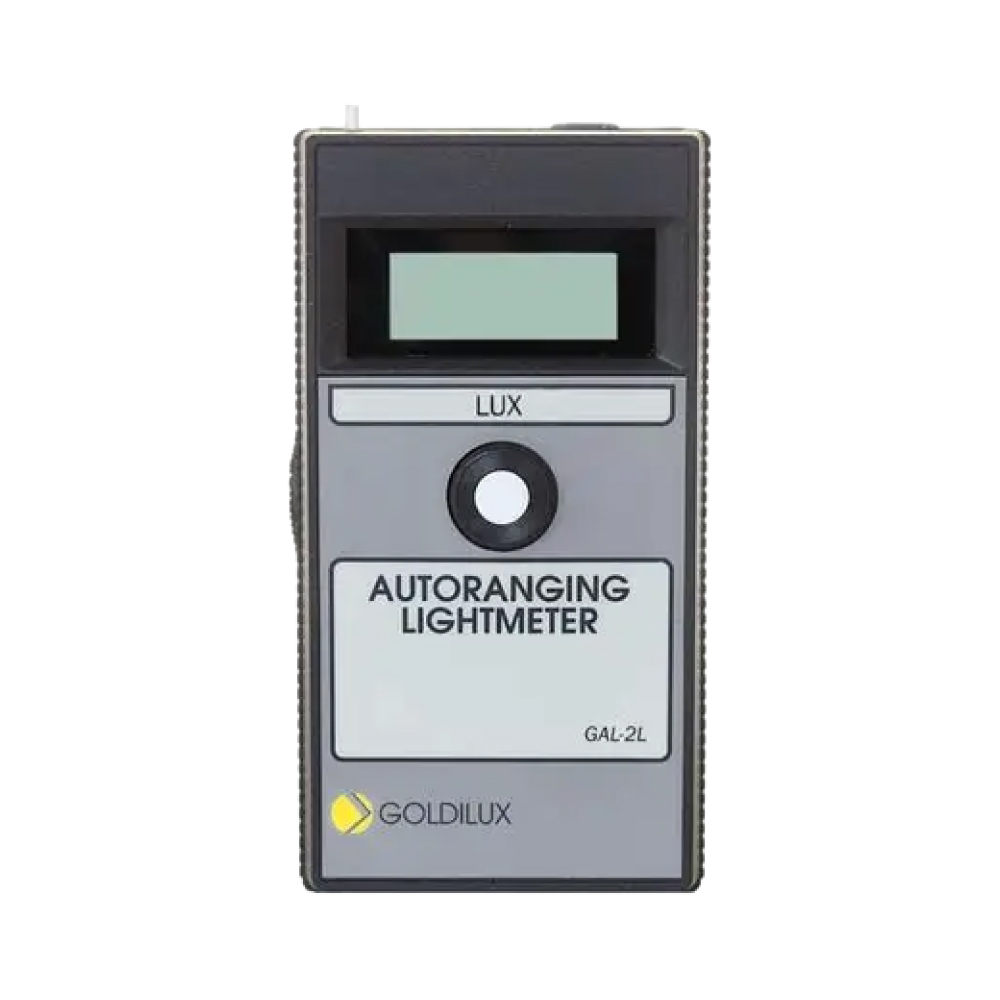

The Goldilux GAL-2L White Light Meter (Low Range) is an accurate, hand-held autoranging instrument designed for both general-purpose field use and precise laboratory applications. Featuring a built-in, long-lasting silicon photodiode detector, this robust unit delivers excellent photopic correction and directional response, ensuring highly stable and linear light measurements.
Key Features & Advantages
Autoranging Capabilities: Automatically scales to measure light intensity up to 20 000 lux without manual range switching.
High-Accuracy Sensor: The integrated silicon photodiode provides measurements with an accuracy better than +/- 3% across all commonly used light sources.
Versatile Readout: Measurements can be displayed in either lux or footcandles on the large, easy-to-read 4½ digit LCD screen.
Data Hold Function: Includes a convenient hold function—operable on the display unit or remotely—allowing operators to freeze readings for accurate logging.
Analogue Output: Equipped with a 0–1.999V full-scale analogue output for seamless integration into external data logging systems.
Ergonomic & Lightweight: Weighing just 220 g with the battery installed, the meter is engineered for comfortable, single-handed operation in industrial and lab environments.
Technical Specifications
Measuring Range: 0–20 000 lux
Accuracy: Better than +/- 3% for all commonly used light sources
Sensor Type: Integrated stable silicon photodiode
Readout: 4½ digit LCD display
Analogue Output: 0–1.999V full scale
Operating Temperature: 0°C to 50°C
Power Source: 1 x PP3 9V alkaline battery
Battery Life: Approximately 180 hours (typical current consumption of 2,5 mA)
Dimensions: 150 x 80 x 35 mm (basic unit)
Mass: 220 g (with battery)
Warranty: One year
**Errors and omissions excepted (E&OE)
