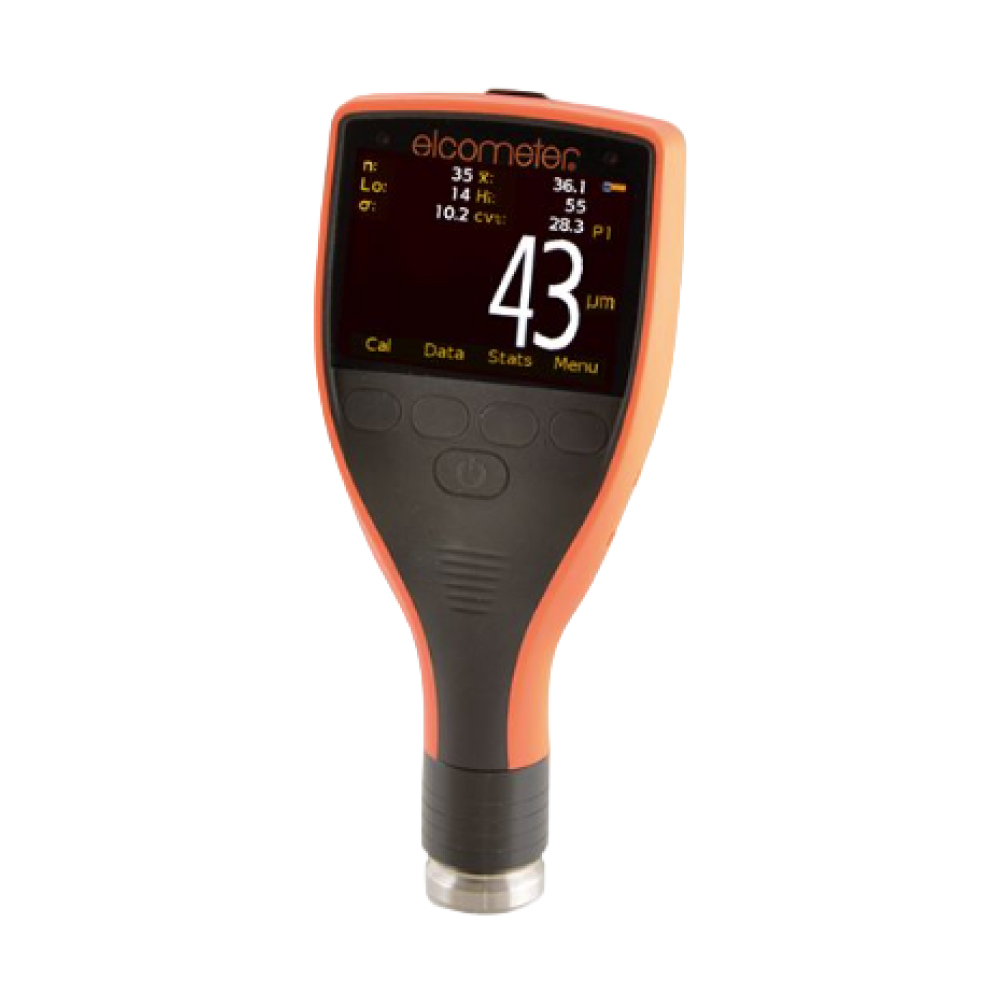

The Elcometer 224 Digital Surface Profile Gauge is a high precision instrument designed to measure surface profile quickly, accurately, and consistently on blasted steel and other prepared metal surfaces. Its rugged design, advanced data management features, and compliance with international standards make it ideal for coatings inspection, manufacturing, and quality assurance.

Surface profile is a critical factor in coating adhesion and long term performance. The Elcometer 224 ensures accurate peak to valley measurements, helping inspectors verify that surfaces meet specification before coating application.

Key Features

• Measures surface profiles up to 500 μm (20 mils)
• Peak to valley measurement accuracy of ±5%
• Available in Model B and Model T
• Choice of integral and separate probe configurations
• Optional standard and armoured probes for increased application flexibility
• User replaceable tungsten carbide tip capable of up to 20,000 measurements
• Fast reading speed of more than 50 readings per minute
• Suitable for measuring both flat and curved surfaces
• Large colour display with automatic screen rotation
• Large buttons designed for use while wearing gloves
• Multi language menu system for simple operation
• Factory calibrated and ready for immediate use

Advanced Inspection Features

The Elcometer 224 automatically calculates inspection statistics while you work, allowing faster decision making without additional calculations.

Features include:

• Live statistics displayed during inspection
• Graphical display of live readings and stored batches
• High and low limit alarms
• Alpha numeric batch identification
• Date and time stamped readings
• Power save mode with tap to wake functionality

Measurement Modes

The Elcometer 224 offers three inspection modes to suit different testing requirements.

Custom Mode

Configure the gauge to take either 5 or 10 readings per inspection point. Display and save the average, highest, or lowest reading for each set.

Standards Mode

Automatically follows the measurement procedure required by the selected international standard, reducing operator error and ensuring consistent inspections.

Immediate Mode

Capture individual peak to valley measurements while automatically calculating key statistics. Reading limits can be set to provide instant pass or fail alerts during inspection.

Data Management & Connectivity

Inspection data can be transferred directly to your computer or mobile device for fast report generation.

• USB and Bluetooth connectivity
• Compatible with ElcoMaster® Software
• Works with the ElcoMaster® Mobile App for iPhone and Android
• Create professional inspection reports in minutes
• Easily review readings, graphs, statistics, and batch data

Built for Harsh Environments

Designed for demanding industrial environments, the Elcometer 224 delivers reliable performance in the field.

• Heavy duty impact resistant construction
• IP64 dust and water resistant enclosure
• Scratch and solvent resistant display
• Durable probe and gauge construction
• Repeatable and reproducible measurements
• Supplied with a fully traceable Test Certificate
• Backed by a 2 year manufacturer’s warranty

Standards Compliance

The Elcometer 224 is designed for use in accordance with a wide range of recognised national and international surface profile measurement standards.

Applications

The Elcometer 224 is ideal for:

• Surface preparation inspection
• Abrasive blast profile measurement
• Protective coatings inspection
• Marine and offshore maintenance
• Industrial manufacturing
• Corrosion prevention programmes
• Steel fabrication and structural inspection

What’s Included

Each Elcometer 224 is supplied with:

• Glass zero plate
• Calibration test foils
• Fully traceable Test Certificate
• User replaceable tungsten carbide probe tip
• Selected probe configuration, depending on model

Fast, accurate, and easy to use, the Elcometer 224 Digital Surface Profile Gauge provides reliable surface profile measurement for inspectors who require dependable performance in both the workshop and the field.
