Overview

The Sonatest XEO redefines portable Phased Array Ultrasonic Testing (PAUT) by providing the raw computing capability of an advanced benchtop system inside a highly rugged, field-ready instrument. Built on three core pillars Simplicity, Capability, and Reliability the XEO leverages high-speed hardware data processing alongside an ultra-intuitive wizard-guided interface.

Designed to accommodate the future of NDT, it features an open data file format (.ONDE) ready for AI integration and system automation, along with a robust remote API for streamlined workflow synchronization. Whether navigating intricate T-joints, pipelines, or flat plates, the XEO ensures non-destructive testing specialists can validate configurations and capture flaw characteristics instantly and confidently.

Key Features

Simultaneous Multi-Technique Scanning:

Optimize your probability of detection (POD) by running up to 10 PAUT scans, up to 4 TOFD scans, and up to 8 TFM/TFMi™ scans simultaneously within the exact same setup configuration.

Ultra-High Resolution TFM Imaging:

Capture exceptional defect profile fidelity with live imaging speeds across 16 built-in TFM propagation algorithms, delivering crystal-clear scans up to 4 megapixels per image via Sparse Matrix Capture (SMC) hardware acceleration.

Live Onboard 3D Ray Tracing:

Ensure maximum physical inspection coverage with interactive, true geometry 3D live rendering for sectorial and linear scanning directly on-screen.

Interchangeable Mini-Dock Architecture:

Smart-detection interchangeable mini-docks adapt to custom configurations, letting you swap hardware-level channel interfaces seamlessly in the field.

Technical Specs

Industries

The multi-technique precision, robust structural ruggedness, and dynamic TFM modeling capabilities of the XEO make it ideally suited for demanding environments across:

Oil, Gas & Petrochemical:
Volumetric pipeline girth weld profiling, corrosion mapping, flange examinations, and heavy-wall pressure vessel assessments.

Power Generation & Nuclear:
Component health monitoring, complex geometry nozzle evaluations, turbine blade roots, and high-integrity structural weld mapping.

Manufacturing, Construction & Infrastructure:
Testing flat structural plates, structural corner joints, critical bridge elements, and structural T-joints using live 3D tracing verification.

Aerospace & Transport:
Composite skin inspection, component profiling, high-resolution forgings characterization, and asset structural integrity evaluations.

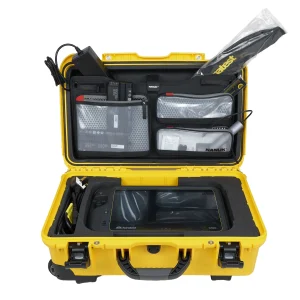

What’s in the Box

Standard configurations vary by custom selection; hardware mini-dock options specified upon build ordering.

• Sonatest XEO High-End Portable Base Unit
• 2 x High-Capacity 99.4 Wh Hot-Swappable Li-Ion Batteries
• Heavy-Duty 100W USB-C AC Power Supply Adapter and Regional Cable
• Smart-Detection Interchangeable Mini-Dock (Selected Option):
  • Option A: Dual I-PEX mini-dock (64:64 channels) + 6x UT Lemo 00 connectors
  • Option B: Single I-PEX mini-dock (128 elements) + 8x UT Lemo 00 connectors
• Protective Transport / Rugged Carrying Case
• Quick-Start User Manual and Calibration Certificate (ISO 18563-1 / ISO 22232-1)
