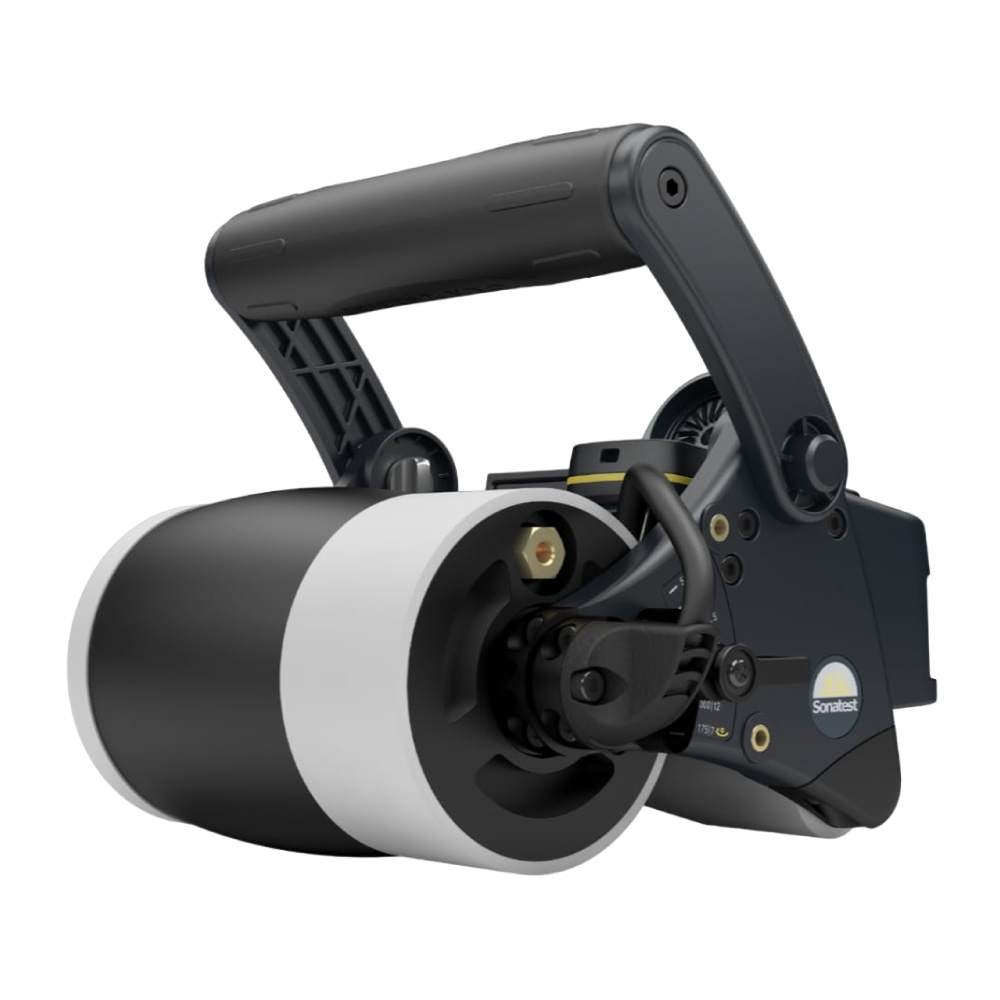

The WheelProbe 2 (WP2) delivers exceptional speed, lateral resolution, and coverage width for non-destructive composite inspection and corrosion monitoring. Designed as a versatile alternative to immersion testing, the WP2 combines phased array ultrasonic technology with ergonomic controls to generate real-time, high-density C-scan data across large surface areas
High-Resolution Coverage: Provides 0.8 mm lateral resolution with scan coverage widths up to 100 mm for rapid area mapping.
Advanced Composite Inspection: Achieves 1 mm near-surface resolution in modern composite materials. Available in 2.0 MHz, 5.0 MHz, and 10 MHz array options with rubber tires tuned to match the acoustic impedance of water.
Real-Time Corrosion Mapping: Displays instant, scrolling thickness C-scans during scanning, making it easy to spot degradation early and track asset health over time.
Operator-Centric Ergonomics: Built with dual integrated lasers for alignment, configurable handles, LED alarm indicators, and built-in remote buttons for indexing and resets.
Seamless Data Analysis: Integrates directly with UTmap, UTstudio+, and third-party software like CIVA Analysis for simplified reporting and predictive maintenance.
Aerospace: Structural composite inspection, stiffener bonding control, and corrosion detection beneath wing spar caps.
Oil & Gas: Asset integrity monitoring and large-scale corrosion mapping on pipelines and pressure vessels.
Marine: Ship hull integrity and structural corrosion surveys.
Automotive & Construction: Quality assurance for advanced composite components and bonded structures.
| Specification Parameter | WP2 64 Specifications | WP2 128 Specifications |
| Weight | 1.06 kg (2.34 lb) | 1.19 kg (2.62 lb) |
| Dimensions (H x L x W) | 125 x 150 x 155 mm (4.9 x 5.9 x 6.1 in) | 125 x 211 x 155 mm (4.9 x 8.3 x 6.1 in) |
| Operating Temperature | 10 to 50°C | 10 to 50°C |
| Centre Frequency Options | 2 MHz, 3.5 MHz, 5 MHz, and 10 MHz | 1 MHz, 2 MHz, 3.5 MHz, 5 MHz, and 10 MHz |
| Number of Elements | 64 | 128 (102 for 1 MHz) |
| Total Active Length | 51.1 mm | 102.2 mm |
| Sensitivity Homogeneity | ±3 dB | ±3 dB |
**Errors and omissions excepted (E&OE)
