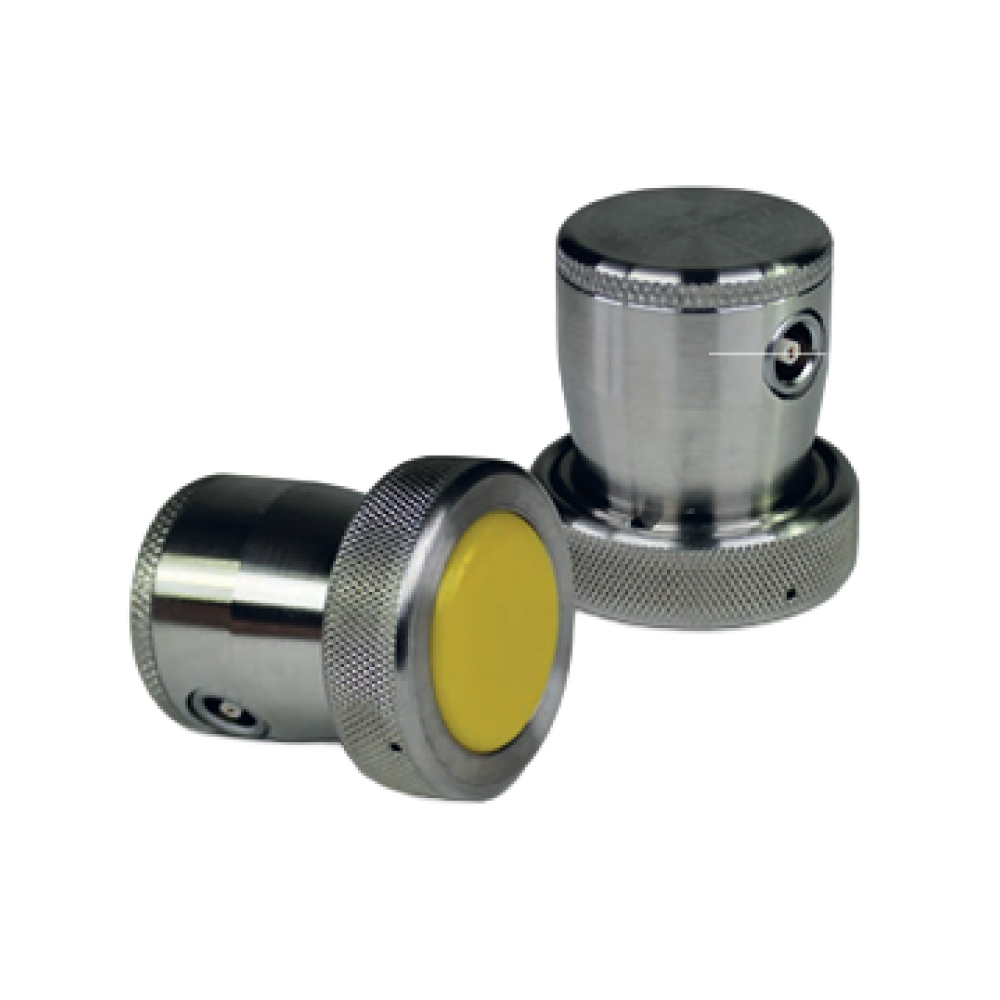

The SLF is a single normal beam compression wave contact transducer designed with replaceable face attachments for flexible ultrasonic testing applications. Medium damped for general-purpose flaw detection and thickness measurement, it can be fitted with polymer membranes for rough surface protection or delay line attachments for high-temperature testing.
The SLF is a single normal beam compression wave contact transducer designed with replaceable face attachments for flexible ultrasonic testing applications. Medium damped for general-purpose flaw detection and thickness measurement, it can be fitted with polymer membranes for rough surface protection or delay line attachments for high-temperature testing.
Key Features & Advantages
Single Normal Beam Design: Engineered for standard straight-beam compression wave contact inspection.
Medium Damping: Provides an optimal balance between pulse resolution and penetration depth for general use.
Replaceable Face Attachments: Supports polymer membrane protection for “soft nose” applications on rough surfaces, as well as delay line attachments of varying lengths.
High-Temperature Performance: Standard operating capability up to 50°C (120°F), with high-temperature delay line options suitable for temperatures up to 400°C.
Composite Variants: Circular, lead metaniobate crystal composite options are available under the PSLF transducer range.
Common Applications
Evaluation of castings and forgings
Testing of white metal bearings
High-temperature component and pipeline inspection
Transducer Models
| Product Code | Description | Frequency | Crystal Diameter | Nearfield Length in Steel |
| SLF5025 | 2.25MHz 1/2″ SC Soft Face | 2.25 MHz | 12.7 mm (1/2″) | 15.2 mm (0.598″) |
| SLF1025 | 2.25MHz 1″ SC Soft Face | 2.25 MHz | 25.4 mm (1″) | 60.9 mm (2.398″) |
| SLF5050 | 5MHz 1/2″ SC Soft Face | 5 MHz | 12.7 mm (1/2″) | 33.8 mm (1.331″) |
| SLF1050 | 5MHz 1″ SC Soft Face | 5 MHz | 25.4 mm (1″) | 135.3 mm (5.327″) |
Case Dimensions and Details
| Crystal Size | Width/Diameter | Height | Connector Options | Position Options |
| 12.7 mm (1/2″) | 26 mm (1.024″) | 32 mm (1.26″) | B, L, D, Z | Side |
| 25.4 mm (1″) | 36 mm (1.417″) | 38 mm (1.496″) | B, L, D, Z |
**Errors and omissions excepted (E&OE)
