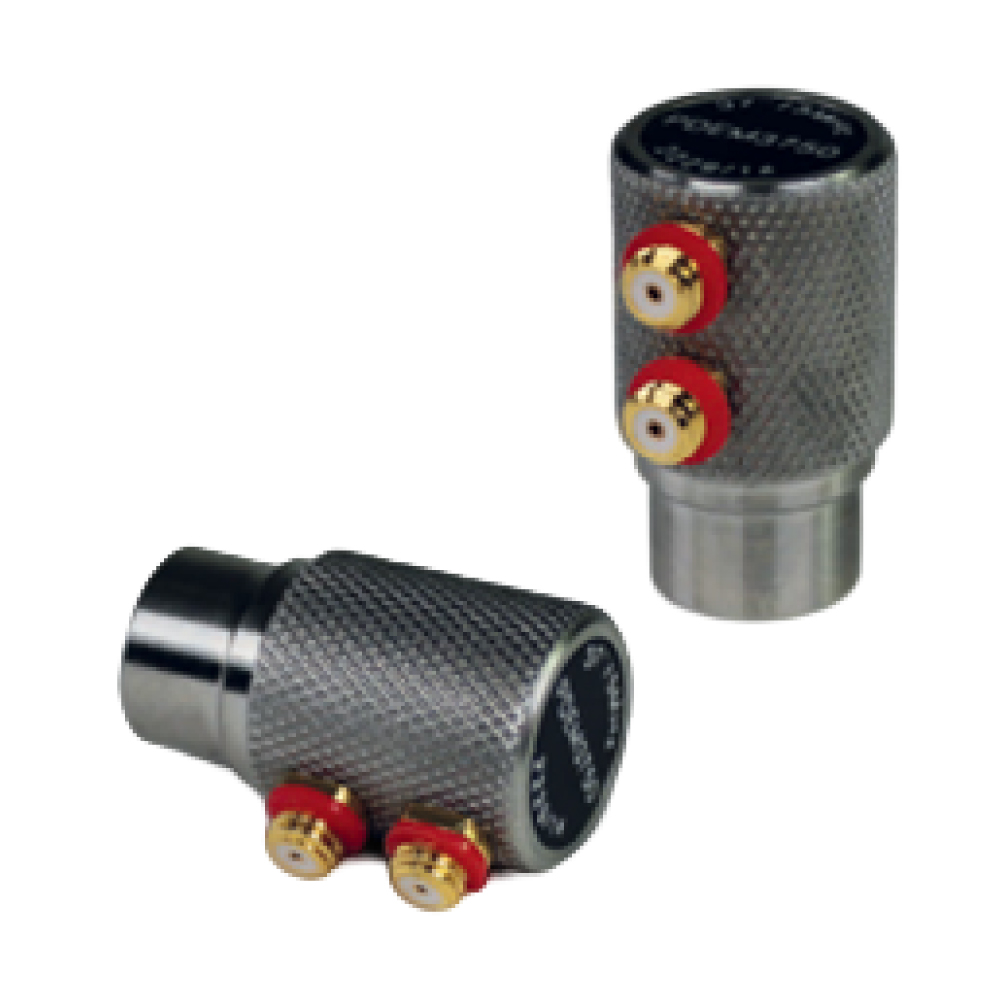

The PDEM series consists of dual normal beam compression wave contact transducers designed for ultrasonic thickness inspection and flaw evaluation. Built with semi-circular lead zirconate titanate (PZT) elements, these probes deliver medium dampening and medium bandwidth for clear signal clarity across various industrial materials.
Dual Element Design: Dual normal beam compression wave contact configuration for near-surface flaw resolution and thickness gaging.
PZT Crystal Technology: Equipped with semi-circular lead zirconate titanate crystals.
Bandwidth Optimization: Medium dampening tailored for balanced penetration and resolution.
Operating Range: Maximum operating temperature of 50°C / 120°F (DEM transducer series available for high-temperature applications).
Side Connectors: Features side-positioned D-type connector options across all case sizes.
Aerospace component and structural testing
Composite laminate and bonding inspection
Wall thickness inspection and corrosion monitoring
| Product Code | Description | Frequency (MHz) | Crystal Diameter (mm / Inches) | Nearfield Length in Steel (mm / Inches) |
| PDEM2525 |
2.25MHz 1/4″ Twin element |
2.25 |
6.4mm / 1/4″ |
3.9mm / 0.154″ |
| PDEM3725 |
2.25MHz 3/8″ Twin element |
2.25 |
9.5mm / 3/8″ |
8.5mm / 0.335″ |
| PDEM5025 |
2.25MHz 1/2″ Twin element |
2.25 |
12.7mm / 1/2″ |
15.2mm / 0.598″ |
| PDEM2550 |
5MHz 1/4″ Twin element |
5 |
6.4mm / 1/4″ |
8.6mm / 0.339″ |
| PDEM3750 |
5MHz 3/8″ Twin element |
5 |
9.5mm / 3/8″ |
18.9mm / 0.744″ |
| PDEM5050 |
5MHz 1/2″ Twin element |
5 |
12.7mm / 1/2″ |
33.8mm / 1.331″ |
| PDEM2510 |
10MHz 1/4″ Twin element |
10 |
6.4mm / 1/4″ |
17.2mm / 0.677″ |
| Crystal Size | Width/Diameter (mm / Inches) | Height (mm / Inches) | Connector Options | Position Options |
|
6.4mm / 1/4″
|
10mm / 0.394″ |
25.4mm / 1″ |
D |
Side |
|
9.5mm / 3/8″
|
12.7mm / 0.5″ |
25.4mm / 1″ |
D |
Side |
|
12.7mm / 1/2″
|
16.2mm / 0.638″ |
25.4mm / 1″ |
D |
**Errors and omissions excepted (E&OE)
