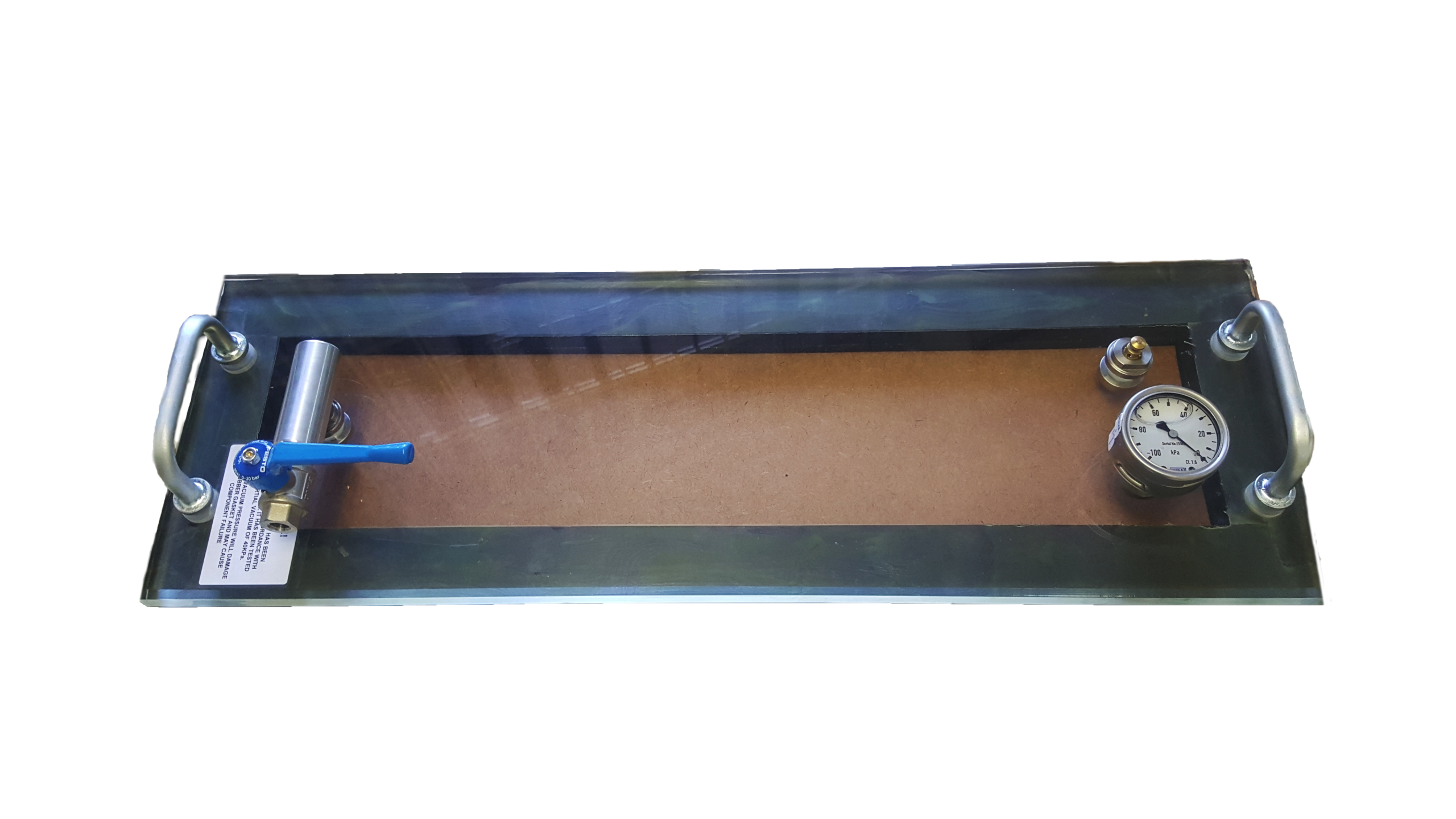

GammaTec Vacuum Box Leak Testing Equipment

GammaTec Vacuum Box Leak Testing Equipment

Bubble leak testing, or Vacuum Box testing, is an integral part of a tank inspection process, to establish the condition of tank bottom plate welds or shell to bottom plate weld

  • Stock Code: MKT-VCM
Description

Overview

Bubble leak testing, or Vacuum Box testing, is an integral part of a tank inspection process, to establish the condition of tank bottom plate welds or shell to bottom plate weld.

The design incorporates a 20mm thick Acrylic window, calibrated vacuum gauge and a dual-layer rubber seal designed to maximise efficiency and reduce operator fatigue. The design has been thoroughly tested in the field in a variety of applications.

Key Features

Pressure Relief & Release Valve:

Combined pressure relief/release valve prevents over-pressurisation of the vacuum box and ensures fast vacuum release after inspection.

Optimised Visibility & Sealing:

Engineered with a heavy-duty 20mm thick clear Acrylic window for clear viewing, paired seamlessly with a dual-layer rubber seal specifically designed to maximise efficiency and drastically reduce operator fatigue.

Industrial Grade Calibrated Gauge:

Equipped with a calibrated WIKA Mod 232,50,63R pressure gauge featuring a 63mm diameter dial, glycerine-filled, all-stainless-steel construction that complies with ASME V Article 10 requirements.

Ergonomic Form Factor:

Fitted with robust handles for easy maneuvering and available in specialized configurations for both Flat/Lap Joints and Inside Corner Joints.

Technical Specifications



Specification Flat and Lap Joint Boxes Inside Corner Joint Boxes
Dimensions L750 x W250mm L450 x W100mm
Window 20mm Clear Acrylic 20mm Clear Acrylic
Viewing area L650 x W150mm L340 x W70mm
Seal Dual Layer Rubber Dual Layer Rubber
Pressure Gauge Calibrated WIKA Mod 232,50,63R Calibrated WIKA Mod 232,50,63R
Gauge Details 63mm diameter dial, Glycerine filled, All stainless steel construction 63mm diameter dial, Glycerine filled, All stainless steel construction
Pressure gauge vacuum range -100 to 0kPa -100 to 0kPa
Standard Compliance Complies with ASME V Article 10 Complies with ASME V Article 10
Max Vacuum -45kPa Standard / -55kPa Max -45kPa Standard / -55kPa Max
Vacuum Generator Gammatec design Gammatec design
Weight 5,4kg 4,5kg

What’s in the Box

  • Vacuum Box unit with handles
  • Integrated 20mm Clear Acrylic window
  • Fitted Dual Layer Rubber seal
  • Calibrated WIKA Mod 232,50,63R pressure gauge
  • Combined pressure relief/release valve

**Errors and omissions excepted (E&OE)
