Key Features & Advantages

• Dual AC/DC Measurement: Measures static DC fields and dynamic AC fields within a frequency range of 10 Hz to 200 Hz.

• Integrated Polarity Indicator: Displays clear “N” (North) or “S” (South) pole indications on the LCD during DC field assessments.

• Hold & Range Functions: Equipped with Peak Hold and Max Hold capabilities, automatic probe zero adjustment, and seamless toggle between mT and Gs measurement units.

• High-Resolution Dual Ranges: Accommodates low and high field measurements with 0.01 mT resolution in the 200 mT range and 0.1 mT resolution in the 2000 mT range.

• Dual Power Modes: Powered by a standard +9V alkaline battery for field portability or an included +9V DC power adapter for continuous lab and benchtop use.

Technical Specifications

• Measuring Ranges: 0–200 mT / 0–2000 mT

• Basic Accuracy: DC: ±2.0% | AC: ±5.0%

• Resolution (DC & AC):

  • 0.00 to 200.00 mT (0.01 mT resolution)

  • 0.0 to 2000.0 mT (0.1 mT resolution)

• Frequency Range: 10 Hz to 200 Hz

• Display: 4½ digit LCD screen

• Units: mT and Gs (1 mT = 10 Gs)

• Operating Temperature: +5°C to +50°C

• Storage Temperature: -20°C to +70°C

• Humidity Operating Range: 20% to 80% RH

• Dimensions: 160 x 88 x 36 mm

• Weight: 300 g

Included Accessories & Probe Options

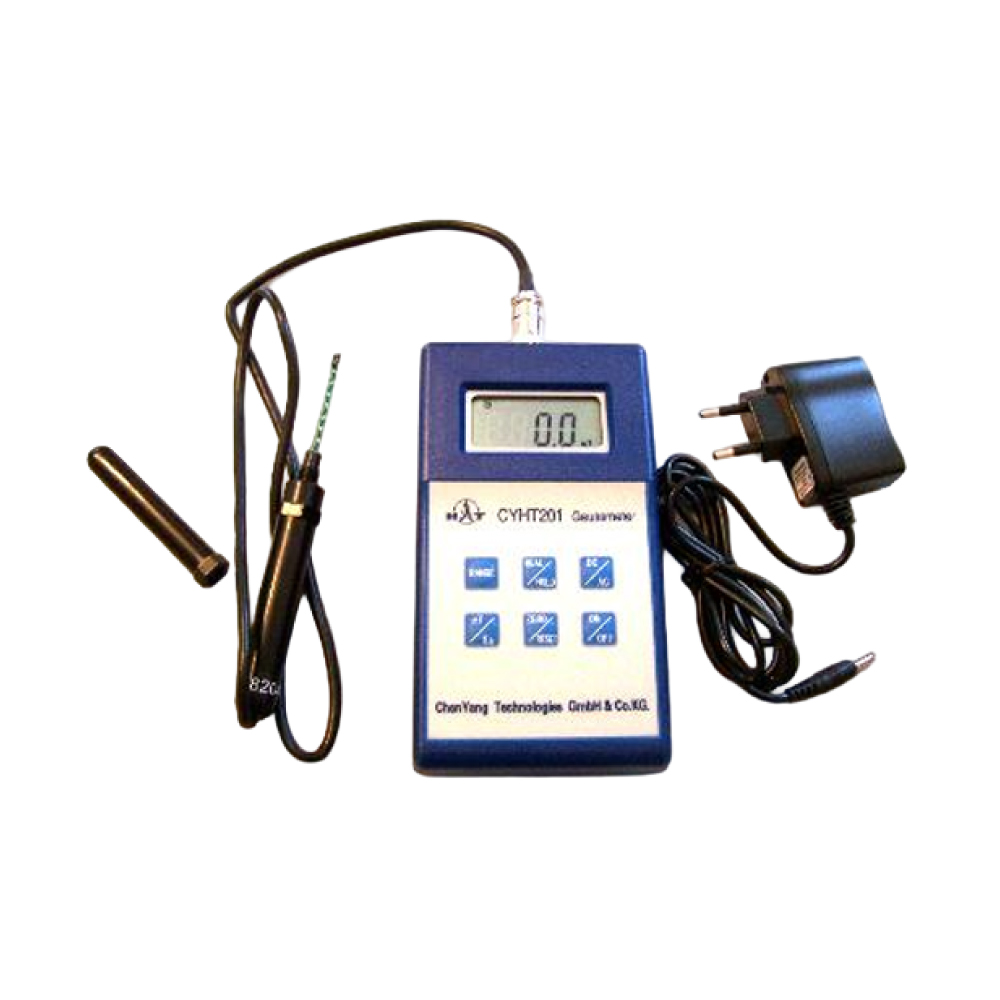

• Standard Package: Includes 1x +9V battery, 1x +9V DC power supply adapter (220V AC input), and 1x CYTP-T08A transverse probe (0.8 x 3 x 40 mm).

• Optional Probes: CYTP-T15A transverse probe (1.5 x 4 x 40 mm) and CYAP-D60A axial probe (Ø6 x 40 mm).
