Male K-Type thermocouple plug with a round pin for quick, accurate temperature reading transmission. Ensures an easy and reliable connection.
Scroll to view all images

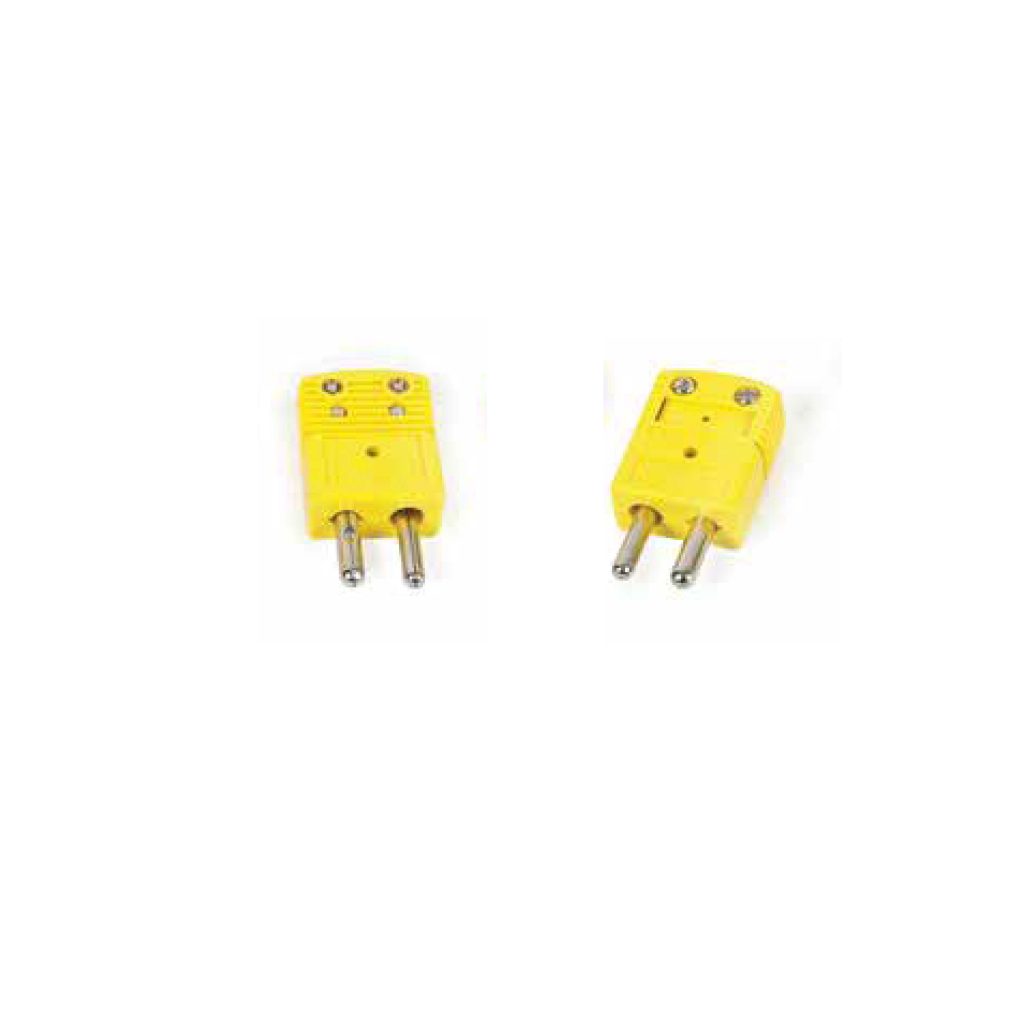

The K-Type Male Thermocouple Connector is a high-quality plug designed to terminate a K-Type thermocouple cable, enabling quick, reliable, and standardized connection to temperature measuring equipment. Featuring the standard round pin configuration, this connector ensures accurate transmission of the temperature-dependent millivolt signal (Supplier: Incertech).
This male plug is crucial for creating a robust cold junction and simplifying the setup and breakdown of industrial heat treatment sites. Its standard K-Type color coding and specialized internal compensating alloy composition prevent miswiring and maintain the integrity of the thermal signal, which is necessary for precise control and documentation of welding preheat and Post Weld Heat Treatment (PWHT) cycles.
Terminating K-Type thermocouple wire runs for connection to temperature controllers, recorders, data loggers, and extension cables in industrial environments.
| Characteristic | Details |
|---|---|
| Thermocouple Type | K-Type (Chromel/Alumel) |
| Gender | Male Plug |
| Pin Type | Round Pin Standard |
| Color Code | Standard K-Type Color (usually Yellow) |
| Supplier SKU | Connect-NCC0589 |
Fully compatible with all K-Type female sockets, panels, and extension cables used in PWHT and general industrial temperature monitoring.
1 x K-Type Male Thermocouple Connector.
K-Type Plug, Thermocouple Pin, Male Connector, Temperature Sensor Plug.
The round pin standard is often preferred in heavy industry for its mechanical robustness and larger contact surface area compared to flat pins, ensuring a more stable electrical connection under movement and vibration.
While the housing is durable, this connector is not inherently rated for waterproofing. For outdoor or wet environments, a protective enclosure or specialized weatherproof boots should be used over the connection.
The metallic pins are made of the correct compensating alloys. When the plug is inserted, the instrument’s circuit measures the temperature at this interface point to electronically compensate for the difference between the actual connection temperature and the thermocouple’s calibration reference temperature.
